Infienon provides us several usuful and effective documents for Power circuit engineers.
Let's have a check those information, and if you have any questions or concerns, please contact to NEXTY Electronics Sales office in your region.
consumer goods and industrial equipment , Industrial & Multi Market

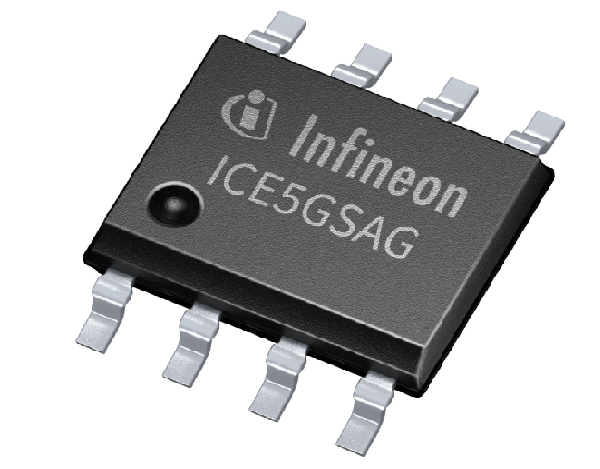

5th Generation Power IC controller.
Infineon's latest 5th generation fixed frequency flyback PWM controller offers high performance and a comprehensive suite of protection to increase system robustness.
Summary of Features:
•125kHz maximum switching frequency
•Brown in protection, fast and robust start-up operation with cascode configuration
•3 level selectable entry/exit active burst mode profile (optional)
•Built-in digital soft-start
•Cycle by cycle peak current limitation
•Support both DCM and CCM operation with slope compensation
•Integrated error amplifier to support direct feedback typical with non-isolated flyback topology
•Digital frequency reduction with decreasing load for higher efficiency
•Adjustable line input over voltage protection (optional)
•VCC and CS pin short to ground protection
•OLP, output short, OTP with hysteresis and VCC over/under voltage protection
•Auto-restart for all protection features

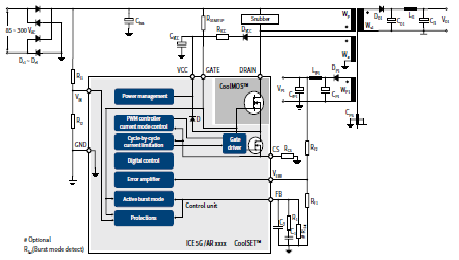

Schematic Description
•Reduce BOM count and cost with integrated line input over voltage protection and error amplifier
•Increase mid and light load efficiency with digital frequency reduction
•High power delivery with slope compensation for CCM operation
Target Applications:
•Offline aux SMPS for server, PC power, aircon, refrigerator and audio
•Offline main SMPS for adapter, set-top-box, water purifier, TV, industrial SMPS and POE
Document Download
- Product Brief ! 5th generation PWM controller Fixed frequency flyback controller and CoolSET™（197 KB）
- Reference Design ! 18 W adapter power supply for set-top box using ICE5GSAG and IPN70R1K2P7S（4.23 MB）
- Application Note 60 W 19 V SMPS demo board with ICE5GSAG and IPA80R650CE（4.85 MB）
- Application Note Quasi-resonant and fixed-frequency flyback Comparison（3.48 MB）
- Design Guide Fifth-Generation Fixed-Frequency Design Guide（2.13 MB）
- Data Sheet Fixed Frequency PWM Controller - in DSO-8（1.31 MB）
Purchase from Here
-
Sample Purchase ICE5GSAG
