Digital Motor Controller (iMOTION™)

Digital Motor Controller (iMOTION™)
iMOTION™ is a family of highly integrated products for the control of a variable speed drive.
iMOTION™ ICs integrate all the control and analog interface functions required for sensor less field oriented control (FOC) of PM motors using DC link or leg shunt current measurements. In addition they feature Infineon’s patented and field proven motor control engine (MCE) that eliminates software coding from the motor control algorithm development process. Implementing a variable speed drive is reduced to configuring the MCE for the respective motor. Assisted by powerful tools like MCEwizard and MCEDesigner it is possible to have the motor up and running in less than an hour.

Schematic Description

Schematic Description

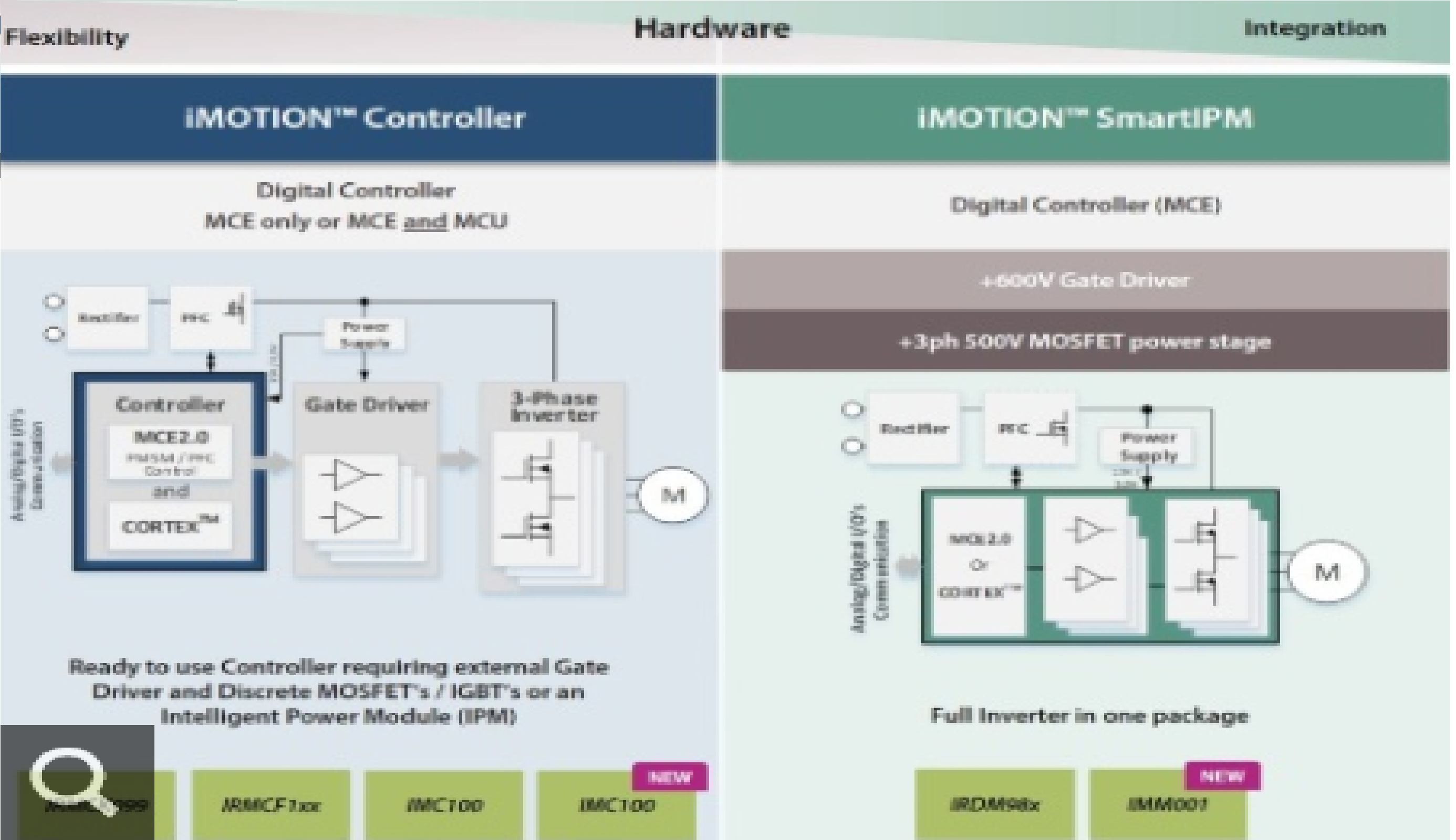

Aimed at offering customers the best fitting solution the iMOTION™ family offers several levels of hardware integration. In addition to the stand-alone MCE control IC Infineon is offering variants with an additional microcontroller. The co-integrated 60 MIPS, 8-bit, 8051 microcontroller enables running application layer software almost independently of the MCE. The highest integration level is achieved in the SmartIPM family members. The combination of the MCE together with the gate driver and a three phase full bridge results in a complete inverter system in one small PQFN package. By integrating both the required hardware and software to perform sensor less control of a permanent magnet synchronous motor (PMSM) they provide the highest energy efficient appliance motor system with the lowest system cost.
（more info）

Document Download

iMOTION™ IMM100 Series offers most compact BLDC motor drive solution
The IMM100 Series offers two optimized variants to best serve the needs of design engineers. The T-variant features the highly sophisticated FOC algorithm integrated in the iMOTION™ MCE 2.0 (Motion Control Engine 2.0). This variant takes advantage of the easy-to-useiMOTION™ software tools for system configuration and tuning. It can also be complemented with additional system level functionalities by using iMOTION™ scripting and, optionally, with PFC control. Alternatively, with the IMM100 A-variant, engineers can implement proprietary motor control software by utilizing the fully programmable integrated ARM® Cortex®-M0 MCU – and still enjoy the benefits of complete hardware integration.

Purchase from Here
