(H)EV - Main INVERTERS

Automotive (in-vehicle) applications

(H)EV - Main INVERTERS

(H)EV - Main INVERTERS
In electric drivetrains, the main INVERTERS is responsible for controlling the electric motor. Because it determines driving behavior and contributes to system efficiency, it is one of the key components of a vehicle. The main INVERTERS also returns energy generated by regenerative braking to the battery. As a result, the vehicle's driving range is directly related to the efficiency of the main INVERTERS.

To meet our customers' main INVERTERS requirements, Infineon offers a broad product portfolio and extensive application and system expertise. Infineon's solutions reflect your desired system efficiency and cost-effectiveness. We also provide all the technical support you need and offer evaluation kits to shorten system development time.

Check out our featured products here.
- Automotive IGBTS Modules HybridPACK™ 2
- AURIX™ Automotive 32-bit Multicore Microcontroller
- XENSIV™ High-Precision GMR/AMR/TMR Angle Sensor

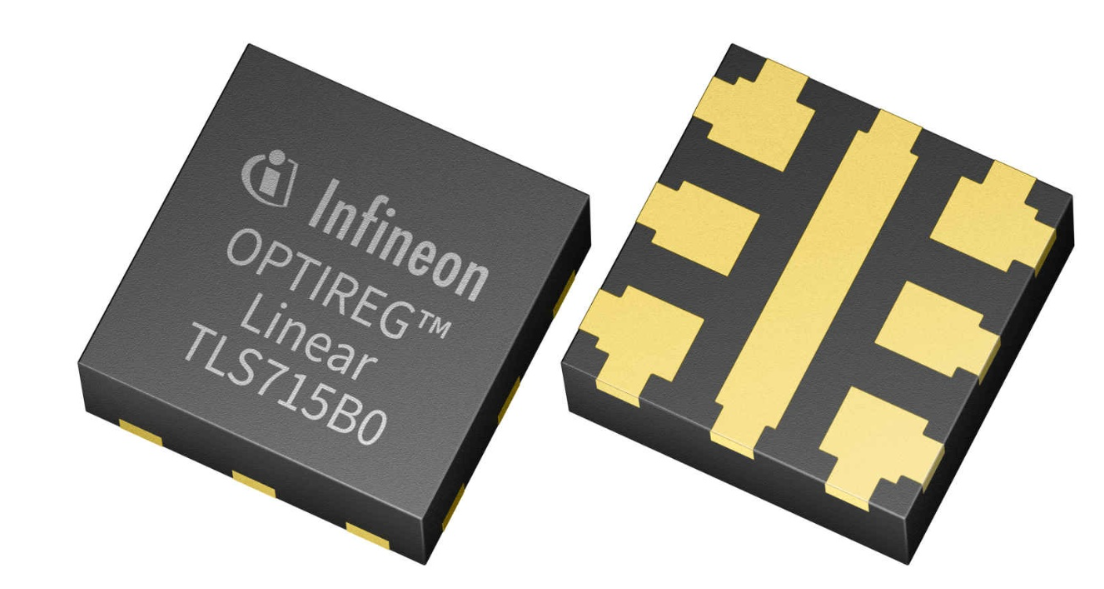

- OPTIREG™ Automotive Voltage Regulators and DC/DC Converters

Circuit diagram explanation

Circuit diagram explanation
Benefits of the system
• Our automotive-grade product portfolio supports a wide range of motor, generator, and POWER SUPPLIES classes.
• High-efficiency 3-phase drive with extremely low conduction loss even at high SWITCHES frequencies.
- Insulated GATE DRIVER
• A wide range of 32-bit microcontroller solutions with highly cost-effective resolver interfaces specifically designed for (H)EV applications.
(For more details, click here)

Download materials

We've compiled technical documents, product catalogs, and other materials provided by Infineon, so please check them out here!

For further details, please Inquiry NEXTY Advanced Technology Company.
