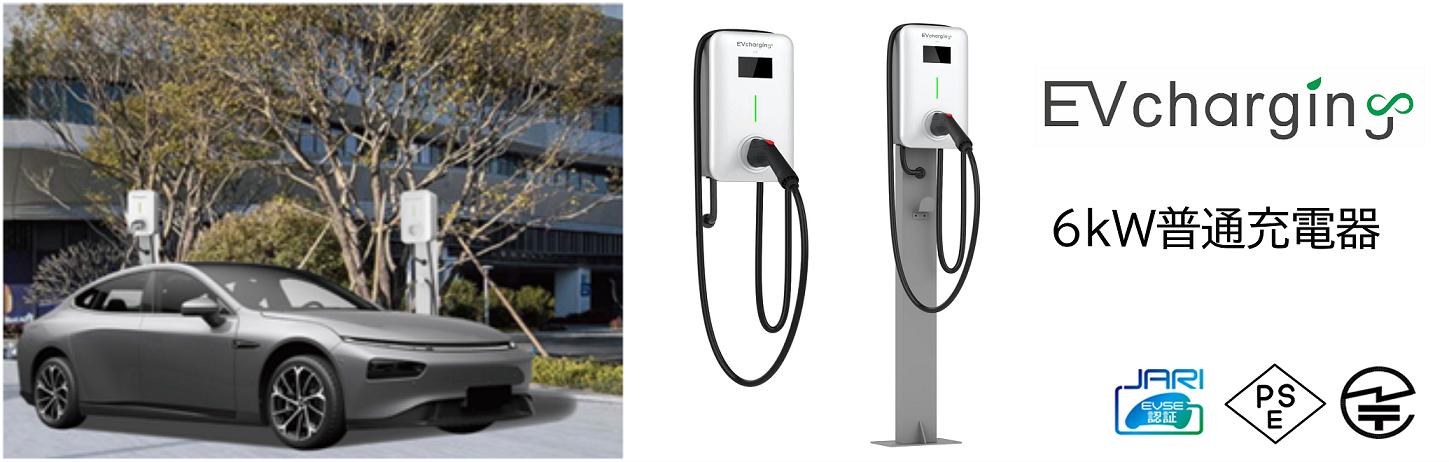

Charging equipment for EV/PHEV 6kW AC normal CHARGERS

This is a robust and versatile universal EV CHARGERS. It features multiple layers of safety protection, including overcurrent, overvoltage, undervoltage, overheating, relay sticking, and surge protection, ensuring safe and reliable use.
With Wi-Fi, Bluetooth, ETH, and 4G communication interfaces, it can accommodate a variety of installation environments. Both wall-mounted and pole-mounted versions are available to suit the requirements of your installation location. (Pole stand is optional.)

CHARGERS specifications

Item	Specifications
	AP-OP-Cable-W5	AP-OP-Cable-B5	AP-OP-Cable-W7	AP-OP-Cable-B7
Charging CABLES length	5m	5m	7m	7m
Casing color	white	black	white	black
Weight	<10kg
size	H:395mm W:235mm D:110mm (excluding charging CONNECTORS)
IP rating	IP65 (excluding the charging CONNECTORS)
Rated voltage	200±20Vac
Rated current	30A
Rated Output	6kW
Grounding system	TT, TN, IT
Charging CONNECTORS	SAE J1772 (Type 1)
Operating temperature	-30℃～50℃
Operating humidity	5％～95％
Usage altitude	<2,000m
Residual current detection	20mA CCID
Communication Interface	WiFi, Bluetooth, Ethernet, 4G
Communication protocol	Compliant with OCPP 1.6J (OCPP 2.0.1 support is currently under development).
safety protection	Overcurrent, overvoltage, undervoltage, overtemperature, relay sticking, continuous grounding performance monitoring, household power protection, residual current protection, integrated surge protection.
certification	JARI A 001:2024 EV/PHEV AC Standard CHARGERS Product Certification Standard
Pole stand	option

Operation applications, maintenance tool applications

Charging operations are performed using the dedicated smartphone application, "EVCharging."
CHARGERS settings and other configurations are performed using the "ChargeDevops" app, a maintenance tool application specifically for smartphones. (Recommended operating environment: iOS 14 or later)
