Product Information
AC/DC DIN rail POWER SUPPLIES
The RACPRO series of industrial DIN rail AC/DC POWER SUPPLIES features a compact and highly efficient design, offering single-phase input models with a maximum output of 480W and three-phase input models with a maximum output of 960W. The 120W and 240W models offer adjustable output voltages of 12V, 24V, and 48V, and all products can supply full power up to an ambient temperature of +60°C with natural convection cooling alone. Push-in TERMINALS, combined with DIN rail mounting clips, allow for quick and tool-free installation and removal. The 480W model offers adjustable output voltages of 24V and 48V.
Durability and environmental compatibility
With an input surge withstand capability of up to 4kV and output reverse voltage protection exceeding 35V, this design is built to withstand demanding environments.
With a wide operating temperature range of -40°C to +70°C, it is ideal for use in harsh industrial environments, outdoor applications, and especially in the renewable energy sector.

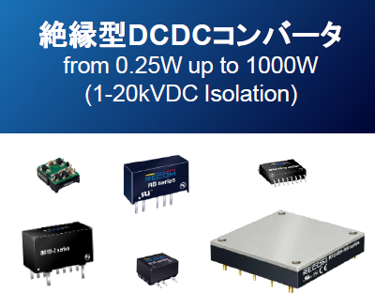

Isolated DC-DC converter
- A variety of package styles and sizes, pin options, and input/output voltage combinations.
- High dielectric strength, maximum 20kVDC
- Global certifications (UL/IEC/EN62368, ES/UL/IEC/EN60601, etc.)
- Railway certification (EN50155)
- Technological capabilities to achieve maximum power density with a minimal footprint.
- Overmolding enables optimal thermal management and high-frequency compatibility with "chip and wire bonding."

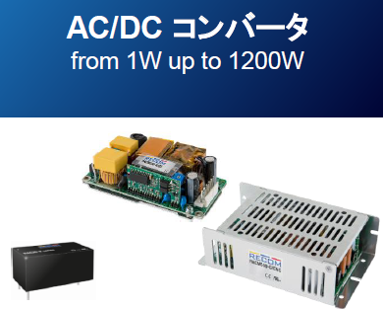

ACDC converter
- All ACDC products have EMC emission levels of Class B.
- PCB mounting, wire routing, open FRAMES
- Universal input voltage range (100V-230V-277V-480V)
- Three-phase input, OVCⅢ (optional)
- Global certifications (UL/IEC/EN62368, IEC/EN60335-1, ES/UL/IEC/EN60601, IEC61558-2-16)
- Ideal for a wide range of applications: Industrial, medical, IoT, machinery, measuring instruments, audio/video, etc.
Corporate Profile
| Corporate Name | RECOM Power |
|---|---|
| Head office location | Austria |
| Established | 1975年 |
