What is the "Hamming Code" that is also used in memory? Fundamentals and applications of error correction technology

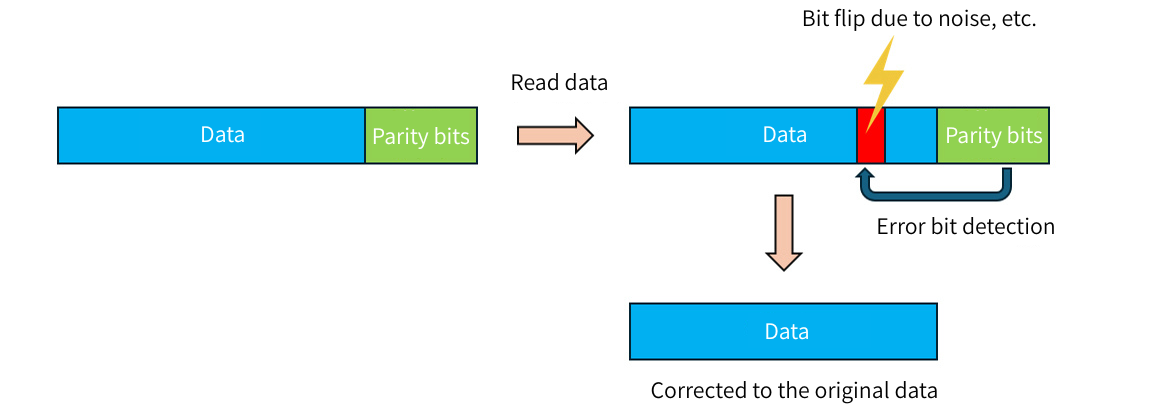

Error correction process

We will explain the error correction process for Hamming (7,4) code.

As an example, let's look at how data is automatically corrected when a single-bit error occurs in which bit D2 is inverted during data transmission of the original 7-bit codeword [0, 1, 1, 0, 0, 1, 1].

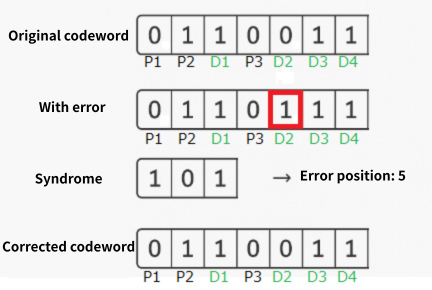

Hamming (7,4) code: Error correction process

1. The original codeword is a 7-bit codeword [0, 1, 1, 0, 0, 1, 1] with data bits [1, 0, 1, 1] and a parity bit added.

2. The fifth bit, D2, was accidentally inverted during data transmission, resulting in [0, 1, 1, 0, 1, 1, 1] being received.

3. At the receiving end, the syndrome (error pattern) [1, 0, 1] is calculated using the check matrix H to identify the location of the error bit.

4. The detected error bit D2 was inverted, and the data was automatically corrected to the original correct data.

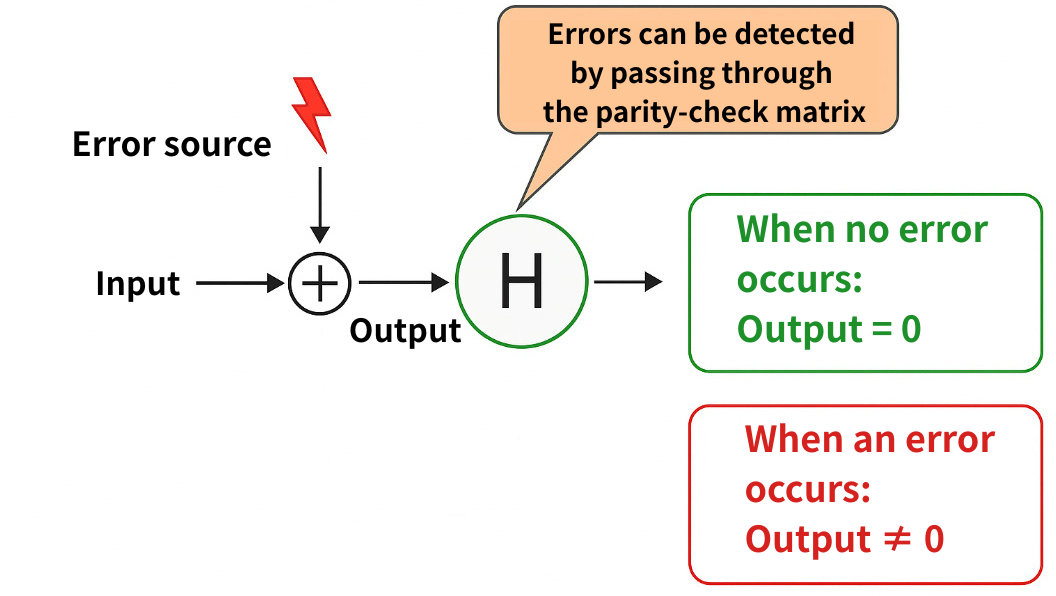

Image of check matrix H

Role of check matrix H

The check matrix H for a Hamming code is a "blueprint" that systematizes the parity bit design and verification rules, and is the basis for error correction. As a concrete example, the check matrix H for a (7,4) Hamming code is shown below.

Each column indicates which parity scheme the bits participate in, and the binary representation of the column number represents the corresponding parity scheme.
The received vector r (data + parity) is multiplied by the check matrix H, and the syndrome s is calculated using mod2 operation (*). This value is the key to error detection. This can be expressed as the following formula:

The syndrome s is the coordinate that indicates the error location, allowing a single bit error to be uniquely identified.
*Mod2 operation: This operation obtains the remainder when dividing by 2, and the result is either 0 or 1.

Intuitively, H is a "map of error detection," and syndromes are "coordinates on the map," with the corresponding columns indicating the error locations.

SECDED

SECDED (Single Error Correction, Double Error Detection) is an extended error correcting code that adds an additional parity bit to the Hamming code, enabling the correction of single-bit errors (Single Error Correction) and the detection of double-bit errors (Double Error Detection). It is currently used as standard in many memory products, including DYNAMIC RAMS and FLASH MEMORIES. Single-bit errors can be located and corrected using a parity check, while double-bit errors are detected as uncorrectable errors by global parity. This design improves detection accuracy while maintaining the correctable range.

merit

• Single-bit errors can be corrected and double-bit errors can be detected, preventing system failures.
• The number of additional bits is small, minimizing the increase in memory capacity.
• Another feature is that it is easy to implement in hardware and can be easily incorporated into DYNAMIC RAMS controllers and SSD controllers.

Disadvantages

• Large overhead (for example, adding 8-bit ECC to 64-bit data increases capacity by approximately 12.5%)
• Computational cost and delay (encoding and decoding are required for error correction and detection)
• Double-bit errors cannot be corrected (two-bit errors can be detected but not corrected)

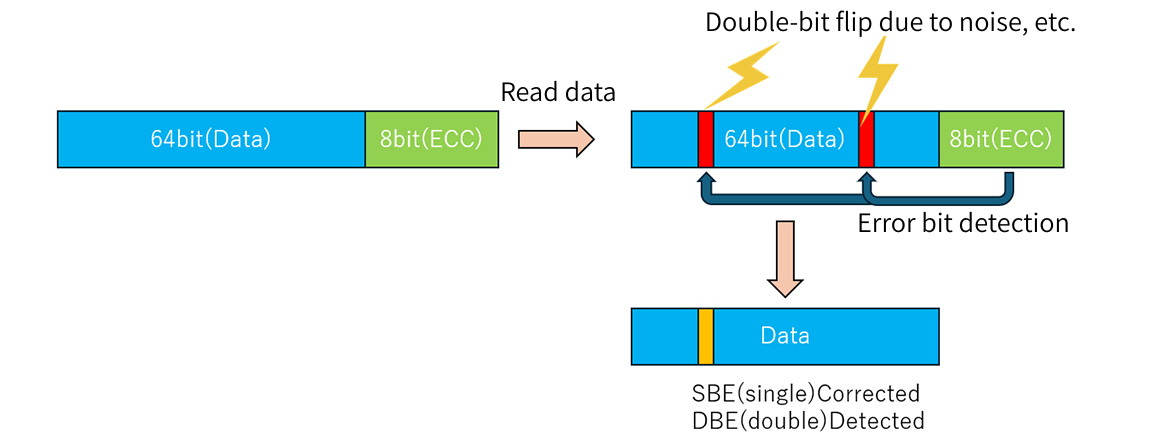

Image of SECDED

On-Die ECC

High-capacity, high-throughput memories require a method that can efficiently correct errors on larger data units, making small-scale codes like the Hamming (7,4) code unsuitable. To address this issue, on-die ECC adds 8 parity bits to 128 bits of data to generate a total of 136-bit codewords. This enables efficient error correction even for large amounts of data, and is primarily designed to correct errors that occur within DYNAMIC RAMS chips.

merit

• By performing error correction within DYNAMIC RAMS chip, it is possible to reduce the defective product rate (yield) caused by minute defects during manufacturing.
• Since error correction processing is completed within the chip, it has almost no impact on the latency (delay) of the entire system.
• Since no design changes are required on the system side, error correction functions can be implemented at low additional costs.

Disadvantages

• It is possible to correct a single bit error, but it is not possible to detect errors of two or more bits.
• The error correction operation is not visible from the system side, which makes it difficult to analyze the cause of a failure when it occurs, and limits the improvement of the reliability, availability, and maintainability (RAS) of the entire system.

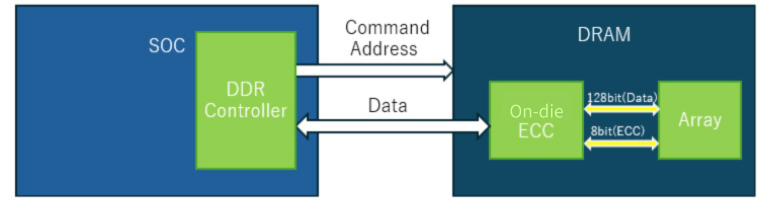

Image of on-die ECC

Inline ECC

With inline ECC, DYNAMIC RAMS controller generates and verifies the ECC code. Storing the data and ECC code within the same DYNAMIC RAMS chip increases the reliability of the entire data transmission path. This makes it possible to detect and correct not only bit errors within memory cells, but also errors that occur during data transmission between the controller and DYNAMIC RAMS. However, because the data and ECC code are stored in the same memory space, an additional bit area is required for ECC.
This inline ECC widely uses the SECDED Hamming code, which contributes to improving the reliability of the entire system.

merit

• The SECDED method makes it possible to correct single-bit errors and detect double-bit errors, significantly improving the reliability of the entire system.
• Error management can be performed by the memory controller, making it easy to obtain error logs and link with RAS functions.
• It is ideal for applications requiring high reliability, such as automotive and industrial equipment.

Disadvantages

• The addition of ECC code requires approximately 12.5% of memory capacity as overhead.
• Due to ECC processing, there is a slight delay when reading or writing data.
• Implementation costs are somewhat higher because an ECC-enabled controller and DYNAMIC RAMS are required.

Inline ECC image

1. Memory field (ECC memory)

With the advancement of AI and IoT, ECC memory is now standard in servers and workstations.
For example, the (72,64) SECDED code (64-bit data + 8-bit parity) is implemented in memory controllers such as DDR4/DDR5 and LPDDR5, and protects the system from soft errors caused by cosmic rays and voltage fluctuations.
Typical examples of deployments include IBM System/360, Intel Xeon, and ARM-based SoCs.

2. Storage field

In SSDs and RAID systems, SECDED is used to improve the long-term reliability of data retention. It is used in RAID2 and enterprise SSDs, and achieves high error detection capabilities with low overhead.

3. Communication Systems

Even in environments with a lot of noise and interference, such as satellite communications, wireless LAN, and IoT communications, incorporating extended Hamming codes can improve communication efficiency and security. Introducing extended Hamming codes into IoT devices has been shown to improve communication accuracy and device performance.

4. Automotive and industrial equipment

SECDED is used in automotive SoCs and industrial control systems, where 1-bit correction and 2-bit detection are mandatory requirements, and is used in LPDDR memory and inline ECC configurations.

5. FPGA/Hardware IP

The FPGA IP core is a 72-bit Extended Hamming Decoder (64-bit data + 8-bit ECC) that can be used with Vivado and other applications. It is optimized for high-reliability communication and data storage, and has single-bit correction, double-bit detection, and error monitoring functions.
