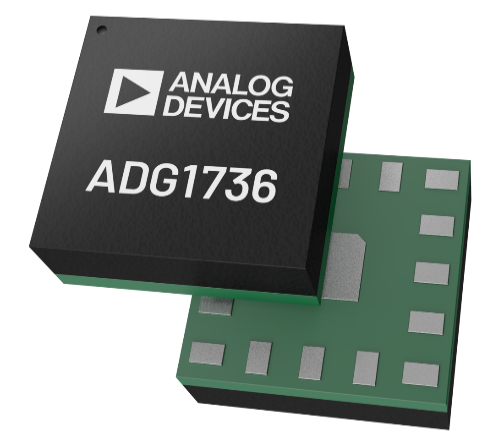

The ADG1736 is an analog multiplexer consisting of two independently selectable single-pole, double-throw (SPDT) SWITCHES that operates from a low voltage single-POWER SUPPLIES range of +1.08 V to +5.5 V or a low voltage dual-POWER SUPPLIES range of ±1.08 V to ±2.75 V. An EN input is used to disable all SWITCHES.
The ADG1736 is designed for small size without sacrificing performance, and its 2 mm × 2 mm land grid array (LGA) package makes it ideal for a variety of space-constrained applications.
The ADG1736 has a low on-resistance of only 2.4 Ω and a rail-to-rail input signal range. When each SWITCHES is on, signals pass equally well in both directions. The digital control inputs are 1.8 V and 3 V JEDEC compliant, facilitating compatibility with microcontrollers and field-programmable gate arrays (FPGAs).
Features
-
Dual POWER SUPPLIES: ±1.08V to ±2.75V
-
Single POWER SUPPLIES: +1.08V to +5.5V
-
Low on-resistance: 2.4Ω
-
16-pin, 2mm x 2mm LGA
-
1.8V and 3V JEDEC compliant LOGIC
-
Specified for +5V, +3.3V, +1.8V, and ±2.5V POWER SUPPLIES
-
Rail-to-rail signal range
-
Operating temperature range: -40°C to +125°C
application
- ATE (Automatic Test Equipment)
- Data Acquisition Systems
- medical devices
- FPGA and Microcontroller Systems
- Audio and Video Signal Routing
- communication systems
- Relay component replacement
Order information
| Model | Temperature Range | Package Description | Package Options | Package Quantity |
|---|---|---|---|---|
| ADG1736BCCZ-RL7 | −40℃ to +125℃ | 6-Terminal Land Grid Array [LGA] | CC-16-10 | Reel, 1500 |
Evaluation boards, simulation models
Detail Link
ADG1736Inquiry
Related Product Information

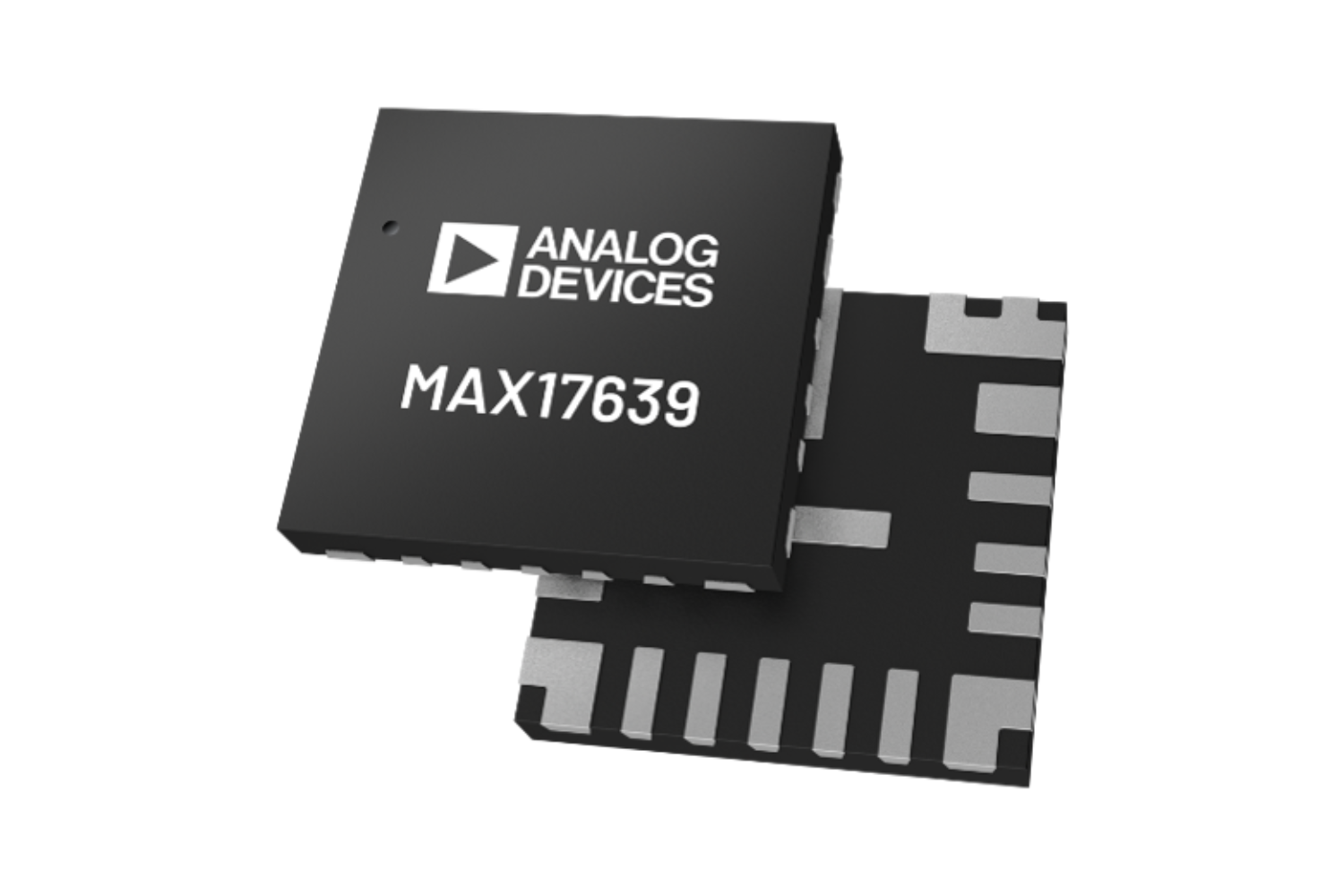

MAX17639: 3V to 36V, 6A/8A/10A, 12A peak, high-efficiency synchronous step-down DC/DC converter
