What are Optical Gesture Solutions?

Gesture sensing offers broad applicability, suitable for consumer electronics, industrial equipment, and automotive systems.
This infrared LED-based solution provides a cost-effective alternative to camera-based gesture sensing. Its ability to incorporate not only standard gestures but also custom patterns and palm shape recognition makes it an ideal next-generation interface.

Create Gesture Sensor Determination Software With Ease!

A key challenge when integrating gesture sensing into applications is the requirement to develop the gesture determination software independently.
To address this, NEXTY provides a design kit featuring a learning platform and hardware, enabling straightforward generation of the necessary gesture determination software.
We also offer contract development services; please contact us for details.
* Hardware is partially under development.

Introduction video on ToF AI gesture sensors

Features

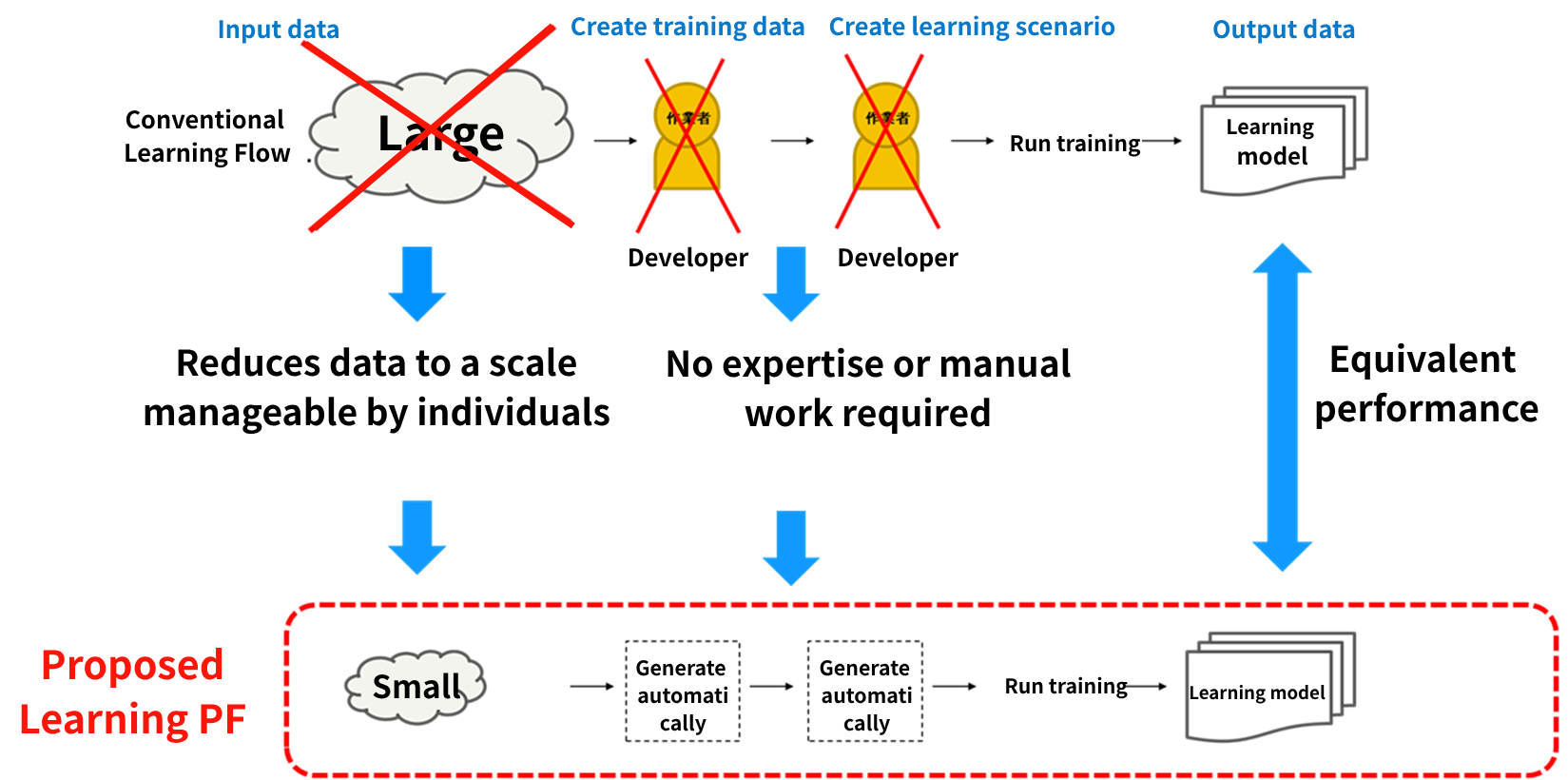

Learning Platform

Our solution provides an environment where anyone can leverage AI with ease.
This learning platform automates nearly the entire process—from gesture data input to model output.

Analog Devices IR Sensor MAX25405

Optical Gesture Sensor
This optical gesture sensor achieves low-cost, high-precision gesture detection by combining it with machine learning-based gesture determination software.

Device Features

  • Supports swipe/rotation/air click/proximity gesture
  • Detection distance: 40 cm
  • Viewing angle ±30°
  • 10×6 IR sensor array
  • I2C/SPI interface/Built-in LED driver
  • Compact 4×4mm QFN package
  • AEC-Q100 compliant

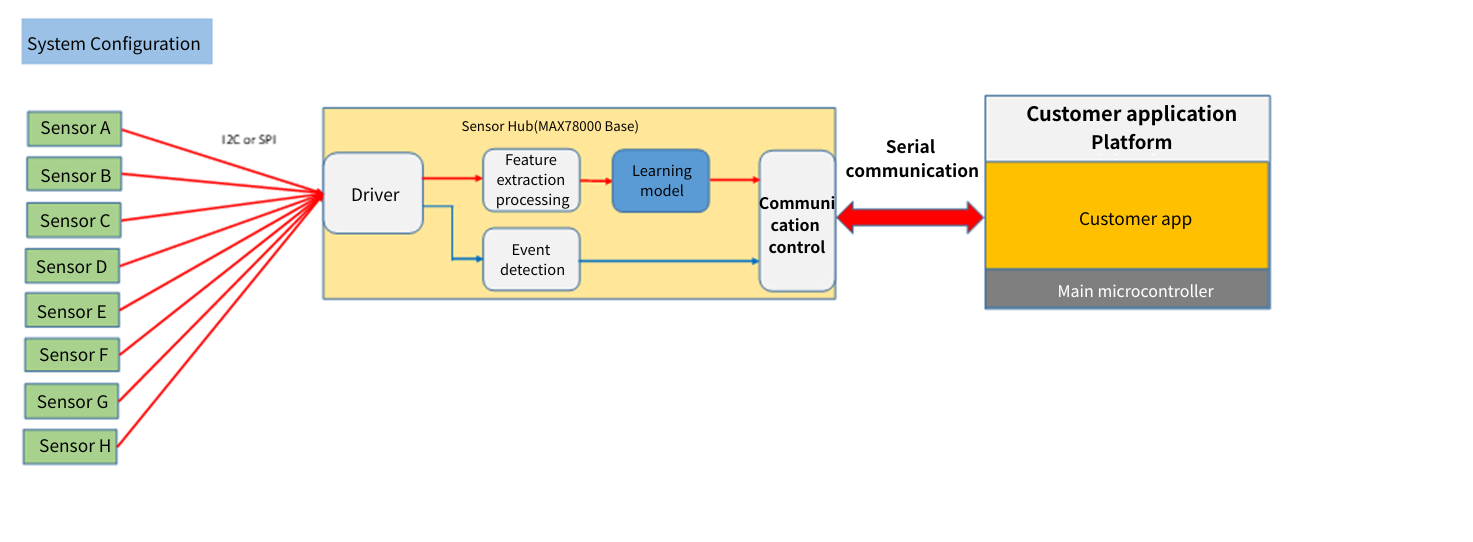

Hardware Design Kit (under development) AI Microcontroller MAX78000 Series

Design Kit Features

  • Multiple sensors can be freely connected in any combination
  • Processing of the learning model by an AI microcontroller
  • Easy connection to user platform via serial communication

Specifications

Shape Recognition Specifications

Simple ShapesRock/scissors/paper/good sign (thumbs up)/okay sign

  • Rock shape

  • Scissors shape

Complex ShapesPistol (thumb and index finger extended) / Korean finger heart (thumb and index finger touching)

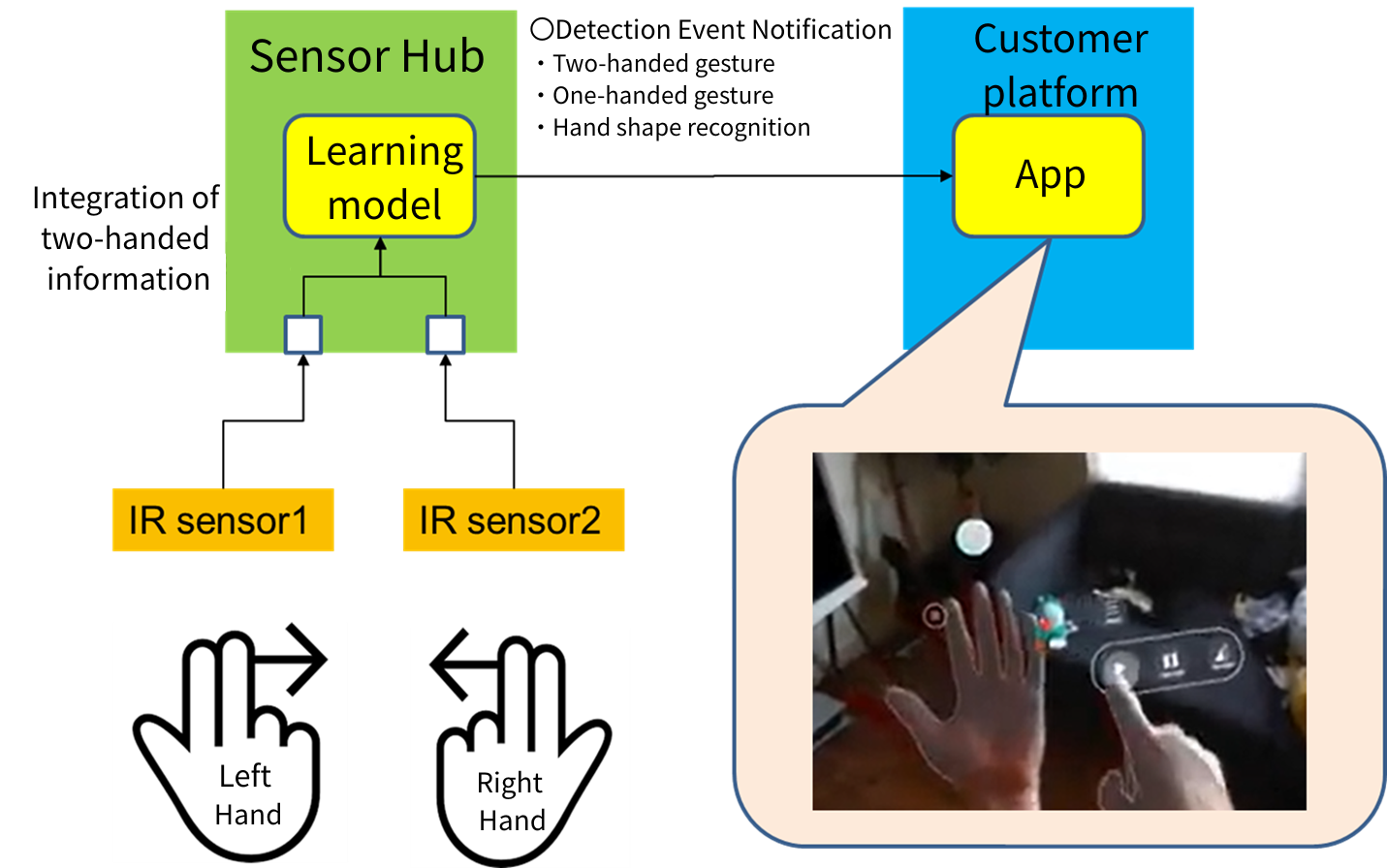

Two-Handed GesturesPlease sign (2-handed praying gesture) / Heart sign (both hands making a heart)

Use Cases

  • Cockpit / Rear Seat
    Switch mechanical controls such as vehicle audio and air conditioning

  • Power Sliding Door
    Open and close doors with gestures

  • Amusement
    Control a performance or action with gestures

  • Kitchen / Toilet
    Contactless control in environments that demand hygiene

  • Head-Mounted Display
    Operate a VR screen with gestures
