Helps prevent accidents caused by drowsy or dangerous driving!
Uses cameras already in your vehicle to provide a low-cost solution.

This system is able to measure people's pulse rate by analyzing blood flow based on facial images captured by a camera. By applying NEXTY System Design's proprietary algorithm to analyze detected pulse waves, the system can also estimate stress levels and emotional states.
With HD cameras becoming standard in vehicles nowadays, this vital sign detection system offers a low-cost solution.
​

Video: Introduction to camera-based vital sensing

See a demonstration of how our technology uses camera-captured vital signs to quantify stress levels.

Features

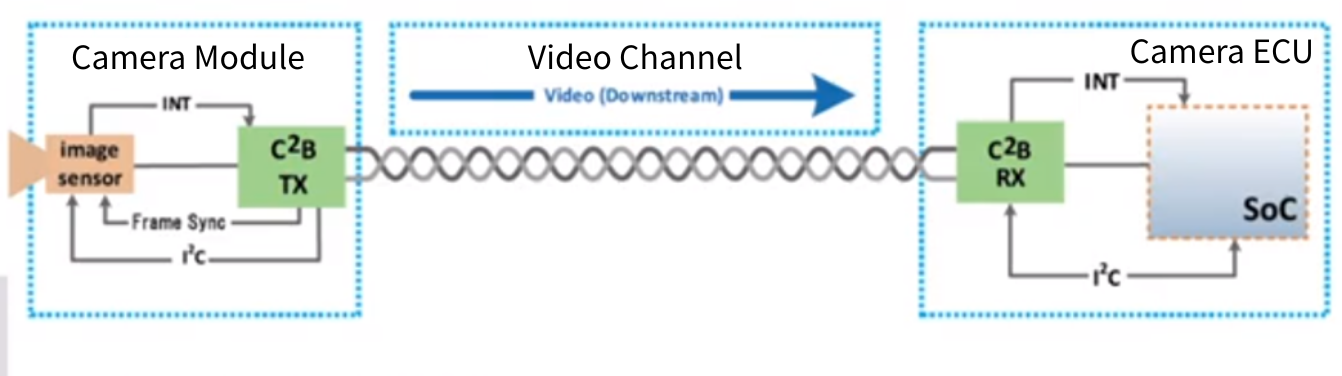

Analog Devices C2B IC for HD Video Data Transmission

Features

・Maximum resolution: 720p (60fps)/1080p (30fps)
・ Can be used with lightweight/low-cost UTP (unshielded twisted-pair) cable
・Point-to-point connection
・Uncompressed method, low latency
・Cable diagnostics function
・ Frame freeze detection function
・Supports up to 30m (4 inline connectors)
・Automotive EMC/EMI/ESD standard support

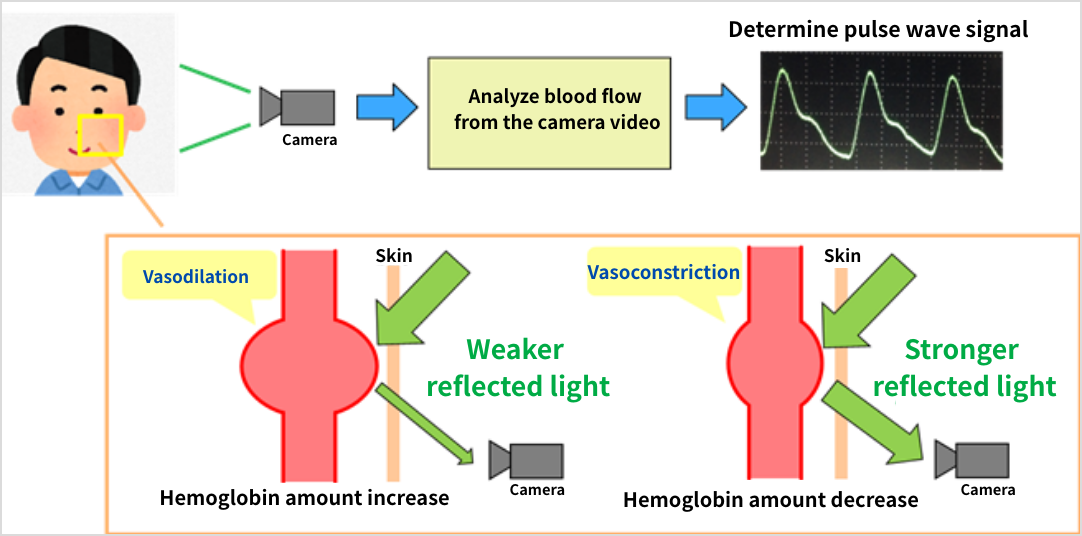

  • Pulse Measurement Principle

    By focusing on the green light absorption properties of hemoglobin in the blood, the intensity of reflected light from the skin’s surface, which changes with blood vessel expansion and contraction, is measured and converted into an electrical signal.

  • Stress Measurement Principle

    Stress levels are calculated from frequency analysis of pulse waves. The balance between the sympathetic and parasympathetic nervous systems, derived from pulse wave fluctuations, is quantified.

Application examples

Driver Monitoring System

Driver monitoring systems help to ensure safe driving by using an in-vehicle camera to quickly detect the driver's condition.

  • Driver monitoring systems help to ensure safe driving by using an in-vehicle camera to quickly detect the driver's condition.
    Face must be still during measurement.
    Camera resolution assumed to be 1080p/30fps.

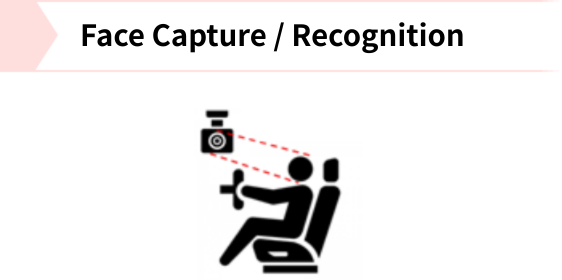

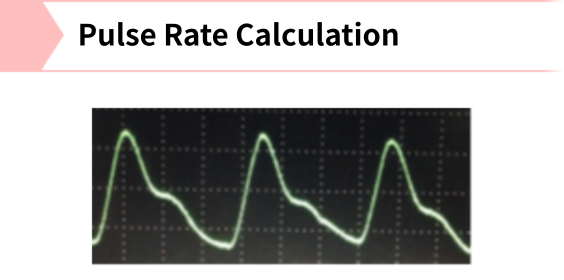

  • Detects the driver's pulse based on facial video data captured by the camera and calculates the pulse rate.

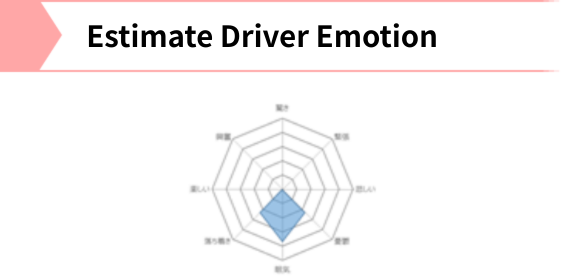

  • Estimates the driver's emotion using an emotion estimation algorithm.

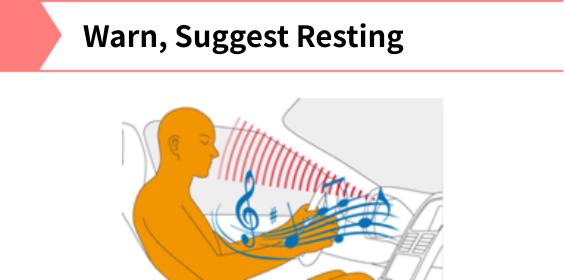

  • Depending on the result of estimating emotions, displays warnings, suggests resting, etc., via messages on the monitor.

Health Management System

PC、タブレット内蔵カメラを使用して、お年寄りの見守りサービスに活用。
非接触で測定するため、容易に健康管理が可能になります。
