PROFET™+2 Smart Low-Side & High-Side Switches

PROFET™+2 Smart Low-Side & High-Side Switches

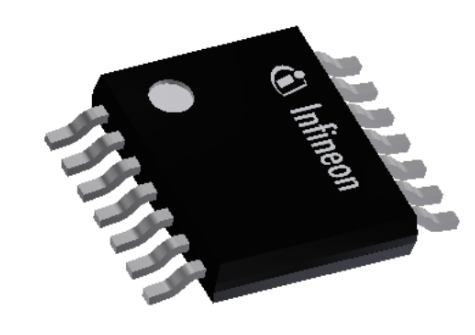

The Newest PROFET™+2 family of protected high-side power switches (8mΩ to 200mΩ) in PG-TSDSO-14 exposed pad package provides state of the art diagnostics and protection features. The family offers Market 1 st BEST form factor, the lowest R DS(ON) (2x8mΩ)/ Smallest package (PG-TSDSO-14) pin pitch 0.65mm. The whole family is compatible with the hardest reverse battery requirement on the market, with ReverSave™ available for the 1 st time in Market on a single chip product! The family offers outstanding energy efficiency with reduced current consumption, state of the art current sense accuracy (k ILIS), benchmark low cranking voltage capability and faster switching/slew rate with no impact on EMC!

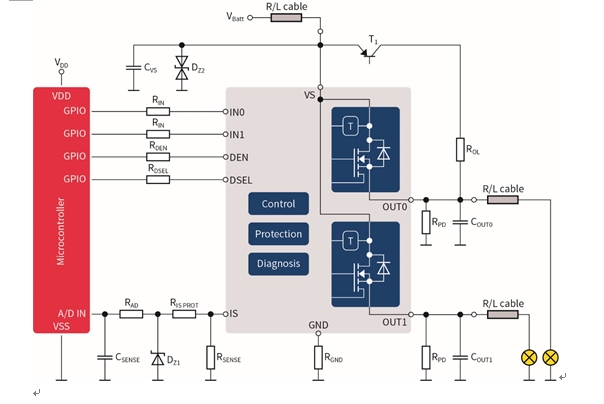

Schematic Description

Schematic Description
Recommendation from NEXTY Electronics FAE.
PROFET™+2 provides:
• 50% reduced internal operating current consumption which improves overall system energy efficiency
• simplified & cost efficient ground network reducing the number of components as well as offering functional system safety
• outstanding current sense accuracy (kILIS) ≤ 5% @ nominal load current which can help to reduce the wire harness
• benchmark cranking voltage capability able to work down to 3.1 V when the battery output voltage can be low for example in cold climates
• optimized for design flexibility across the family by pin to pin compatibility and smaller package size for area savings

Document Download

Main Customers Benefits:
• 50% reduced internal operating current consumption
• Simplified & cost efficient ground network
• Outstanding current sense accuracy (kILIS) ≤ 5% @ nominal load current
• Benchmark cranking voltage capability able to work down to 3.1 V
• Smaller package size for area savings
• Optimized for design flexibility across the family by pin to pin compatibility
• Very low output leakage current (≤ 0.5 μA up to 85°C)
Key Applications:
• Automotive 12 V lighting load applications capacitive loads e.g. halogen bulbs and LED modules
• Resistive loads e.g. small seat heating applications requiring below 8A nominal currents
Key Features:
• Operating voltage range 3.1–28 V with 3.3 V and 5 V compatible logic input
• Protection: current tripping, over temperature, overvoltage, load dump, reverse polarity, short-circuit
• Diagnosis: load current sense output
For more details , Please contact NEXTY Electronics in your region.

Purchase from Here

NEXTY Electronics
