The ADG2712 is a 4-channel SPST SWITCHES featuring ultra-low leakage current. Its unique architecture allows for individual control of the four SWITCHES channels. Each channel exhibits extremely low leakage current, typically 8pA at 85°C and 56pA at 125°C. This ultra-low leakage performance, combined with a low on-resistance of just 9.1Ω, provides a compact SWITCHES solution for applications requiring high precision.
The ADG2712 supports rail-to-rail input signal ranges. Each SWITCHES can transmit signals bidirectionally with equivalent performance when in the ON state. SWITCHES turns on when LOGIC high (Logic 1) is applied to the corresponding digital control line, and the digital control input is 1.8V JEDEC compliant, making it easy to connect to microcontrollers and FPGAs (Field Programmable Gate Arrays).
The ADG2712 is an ideal solid-state replacement for mechanical relays in precision measuring and instrumentation equipment. It offers significant advantages in reliability, miniaturization, and high-speed SWITCHES performance while maintaining the low leakage performance of conventional relays. Furthermore, it can switch minute signals with high precision without affecting high-impedance nodes.
With its excellent low-leakage characteristics and high-precision SWITCHES performance, the ADG2712 is ideal for measurement instruments, data acquisition systems (DAQ), and various sensor interface applications. It is particularly well-suited for applications requiring high-precision handling of minute signals, such as BIOSENSORS and electrochemical measurement applications.
Features
-
Supports operation with both ±1.08V and ±2.75V POWER SUPPLIES.
-
Supports single-POWER SUPPLIES operation from +1.08V to +5.5V.
-
Ultra-low leakage current
At 25℃: ±0.3pA (standard)
At 85°C: ±8pA (standard)
At 125°C: ±56 pA (standard) -
16-pin, 2mm x 2mm LGA package
-
1.8V and 3V JEDEC compliant LOGIC inputs
-
The specifications define the performance at +5V, +3.3V, +1.8V, and ±2.5V operation.
-
Rail-to-rail signal compatible
Application
- Measuring instruments
- BIOSENSORS Measurement
- Electrochemical measurement
- Data Acquisition System
- Automatic Test Equipment (ATE)
Order information
| Model | Temperature Range | Package Description |
|---|---|---|
| ADG2712BCCZ-RL7 | −40℃ to +125℃ | 16-Terminal Land Grid Array [LGA] |
Evaluation boards, simulation models
-
LTspice
Detail Link
ADG2712Inquiry
Related Product Information
AD5706R: A 4-channel, 16-bit current-output DAC with built-in reference and SPI.
The AD5706R is a 4-channel, 16-bit current-output DAC. It supports programmable output currents up to 300mA, making it suitable for photonics control, optical communications, and LED DRIVER applications.
- Analog Devices, Inc.
AD4082: 20-bit, 10 MSPS, low-noise, low-power SAR ADC
The AD4082 is a 20-bit, 10 MSPS low-noise, low-power SAR ADC. Its Easy Drive feature simplifies design.
- Analog Devices, Inc.

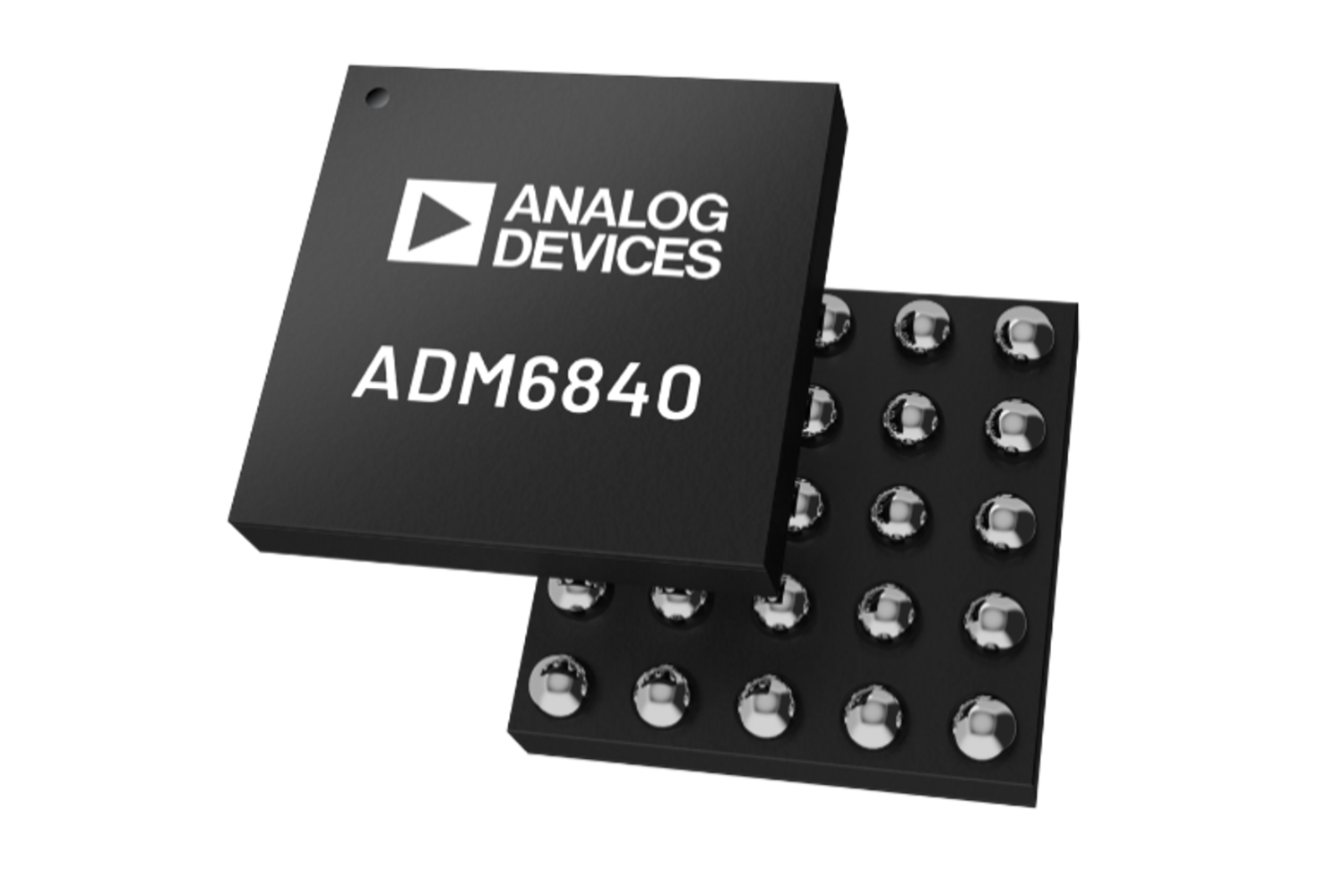

ADM6840: A 6-channel/8-channel adjustable sequencer/supervisor with reverse power-down function and daisy-chain connectivity.
