What is Bluetooth? Explaining how it works and how to use it

• Wireless communication
  Bluetooth communicates in the 2.4GHz ISM (Industrial, Scientific, and Medical) band, which is also the same frequency band used by Wi-Fi and microwave ovens.
• Short-Range Communication
  Bluetooth generally has a communication range of 10 to 100 meters.
• Power saving
  Bluetooth operates with low power consumption, making it suitable for battery-powered devices. In particular, the Bluetooth Low Energy (BLE) standard achieves even lower power consumption.
• Pairing
  To connect Bluetooth devices, a process called pairing is required, which allows the devices to recognize each other and enable secure communication.

• Device Discovery
  When you enable Bluetooth, your device will discover other Bluetooth devices around it, a process called "scanning."
• Pairing
  After the devices detect each other, they pair. Pairing may require user interaction, such as entering a PIN or pressing a button. If pairing is successful, the devices will recognize each other and will automatically connect from the next time onwards.
• Using Profiles
  Bluetooth has different profiles that allow different types of data communication.
  For example, there is the Advanced Audio Distribution Profile (A2DP) for audio devices, and the Human Interface Device (HID) profile for KEY BOARD and mice. Once paired, data is sent and received using these profiles.
• data communication
  Once pairing is complete and the correct profile is selected, data communication between the devices begins. For example, when a smartphone is paired with wireless headphones, music data is sent from the smartphone to the headphones.
• Disconnecting and reconnecting
  The Bluetooth connection will be dropped if the call ends or the device goes out of range. If you try to reconnect, the pairing information will be saved and the connection will be retried automatically.

• Bluetooth 1.0/1.1/1.2
  The initial version had a maximum speed of 1 Mbps, which allowed for basic data communication, but limited connection stability and speed.
• Bluetooth 2.0 + EDR
  Released in 2004, Enhanced Data Rate (EDR) increased the maximum data rate to 3 Mbps, allowing for faster data transfers.
• Bluetooth 3.0 + HS
  It was introduced in 2009 and offered speeds of up to 24 Mbps in High Speed (HS) mode, but because HS mode also uses Wi-Fi, it's not actually a Bluetooth-only speed.
• Bluetooth 4.0
  Released in 2010, it was the first to introduce Bluetooth Low Energy (BLE), which operates with very low power consumption, making it suitable for battery-powered devices such as smartwatches and fitness trackers.
• Bluetooth 4.1/4.2
  These versions have improved BLE performance and security, with version 4.2 in particular increasing data transfer speeds by 2.5 times and adding privacy features.
• Bluetooth 5.0
  Released in 2016, it boasts four times the range, double the data speed, and improved ability to connect to multiple devices simultaneously.
• Bluetooth 5.1/5.2/5.3
  These versions have further improved performance and added new features, notably 5.1, which improves location accuracy, and 5.2, which introduces a new audio profile called LE Audio.

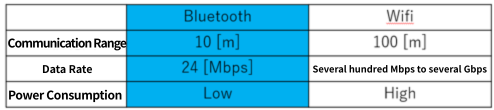

Although Bluetooth has a lower communication range and transfer speed than Wi-Fi, it consumes less power.
Due to these characteristics, Bluetooth is primarily used for short-range communication between devices, making it suitable for headphones, KEY BOARD, mice, smartwatches, etc. Wi-Fi is used for internet connection and large data transfer, making it suitable for PCs, smartphones, TABLETS, etc.

Standard Profile
A profile defined and published by the Bluetooth SIG. There are approximately 100 profiles defined, and among them, there are some that are commonly used. For example, HSP (Headset Profile) is a profile for headsets, and HID (Human Interface Device) is a profile for KEY BOARD and mice. There is also a profile called A2DP (Advanced Audio Distribution Profile) that enables high-quality audio streaming.

Custom Profile
A profile independently developed and defined by a third party. While it is sometimes used to differentiate from other companies' products, it may not be compatible with other companies' products.
Learn more about profiles

• (Bluetooth Profile Technical Blog Coming Soon)

• No CABLES needed
  Bluetooth is a wireless technology that allows devices to connect without CABLES, saving space around the device, such as on a desk.
• Power saving
  In particular, Bluetooth Low Energy (BLE) operates with low power consumption, making it ideal for battery-powered devices, such as smartwatches and fitness trackers.
• Downsizing
  Because communication is power-efficient, the batteries installed in products can be made smaller, making it possible to create small products such as earphones.
• Easy connection
  Bluetooth devices can be easily connected by pairing them. Once paired, they will automatically connect from the next time onwards, eliminating the need for any hassle.
• versatile
  It supports a variety of uses, including audio streaming, data transfer, and connecting input devices.

• home appliances
  By connecting a Bluetooth LOUDSPEAKERS to your TV or home theater system, you can enjoy high-quality sound wirelessly.
• Office Environment
  Using a Bluetooth KEY BOARD, mouse, printer, and more can help reduce CABLES clutter and keep your desk tidy.
• health care
  Smartwatches and fitness trackers can connect to smartphones via Bluetooth, allowing you to record and manage exercise and health data in real time.
• In-vehicle systems
  If you use a Bluetooth-enabled car navigation system or audio system, you can connect it to your smartphone for hands-free calls and music playback.
• Smart Home
  Bluetooth-enabled smart home devices (such as lights, security cameras, and thermostats) can be easily controlled from a smartphone or TABLETS.

• Latest Standards
  The latest version is Bluetooth 5.4. The main focus is on expanding the advertising communication method. It is intended for applications such as electronic shelf labels.
• LE Audio
  Introduced in Bluetooth 5.2, LE Audio enables high-quality, low-latency, and low-power audio streaming, improving the performance of hearing aids and wireless earbuds.
• IoT (Internet of Things)
  Bluetooth is also attracting attention as a key communication technology for IoT devices, and is expected to be applied in a variety of fields, including smart homes, smart cities, and industrial IoT.
