Wi-Fi Network Configuration

In this column, we will explain the technical mechanisms of Wi-Fi, which is already being used by many people and in many places.
This time, we will focus on Wi-Fi network configuration.
Network topology: "Home network" and "Public Wi-Fi spot"
Equipment configuration: "Access point", "Client device", "Router"
We will explain the following.

Network Topology

Wi-Fi network topology refers to the configuration and connection form of a wireless network. This article explains Wi-Fi network topology from two perspectives: a home network and a public Wi-Fi hotspot.
These two Wi-Fi network topologies have different uses and characteristics, but both have become essential in our daily lives with the proliferation of mobile devices.

Home network

Home networks are used in a wide range of home environments due to their simple configuration and ease of management.

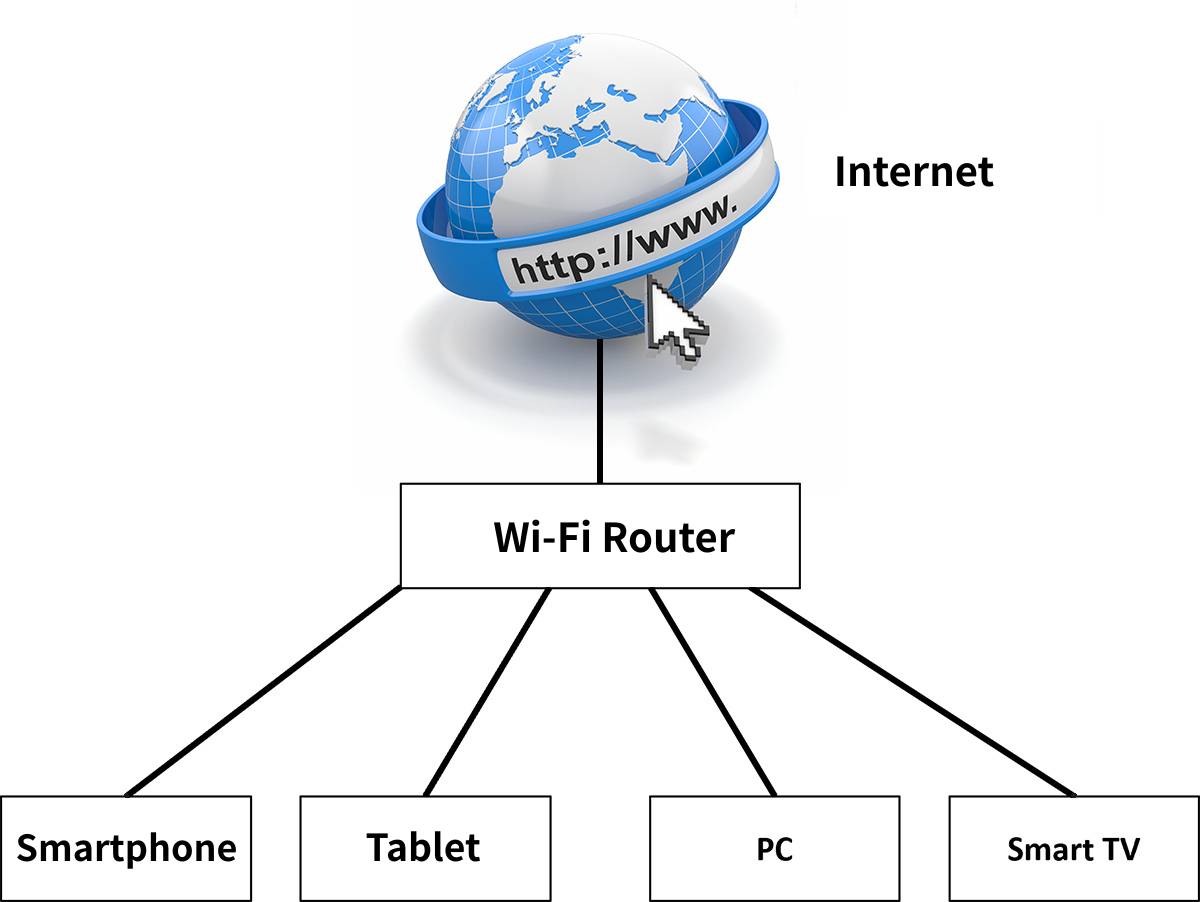

Typical home Wi-Fi network configuration

The Wi-Fi router or Access point is located in the center.
All devices (smartphones, computers, smart appliances, etc.) connect to this central Access point.
A router acts as a connection between the Internet and your local network.

Characteristics of home networks

It's relatively easy to set up.
Security is easy to manage.
Efficiently connect multiple devices.

What you need to set up a home network

Internet line contract
Wi-Fi router (or home gateway with Wi-Fi router functionality)
Terminal devices with Wi-Fi connectivity (PCs, smartphones, TABLETS, etc.)
Information used for connection settings (network name, encryption key)

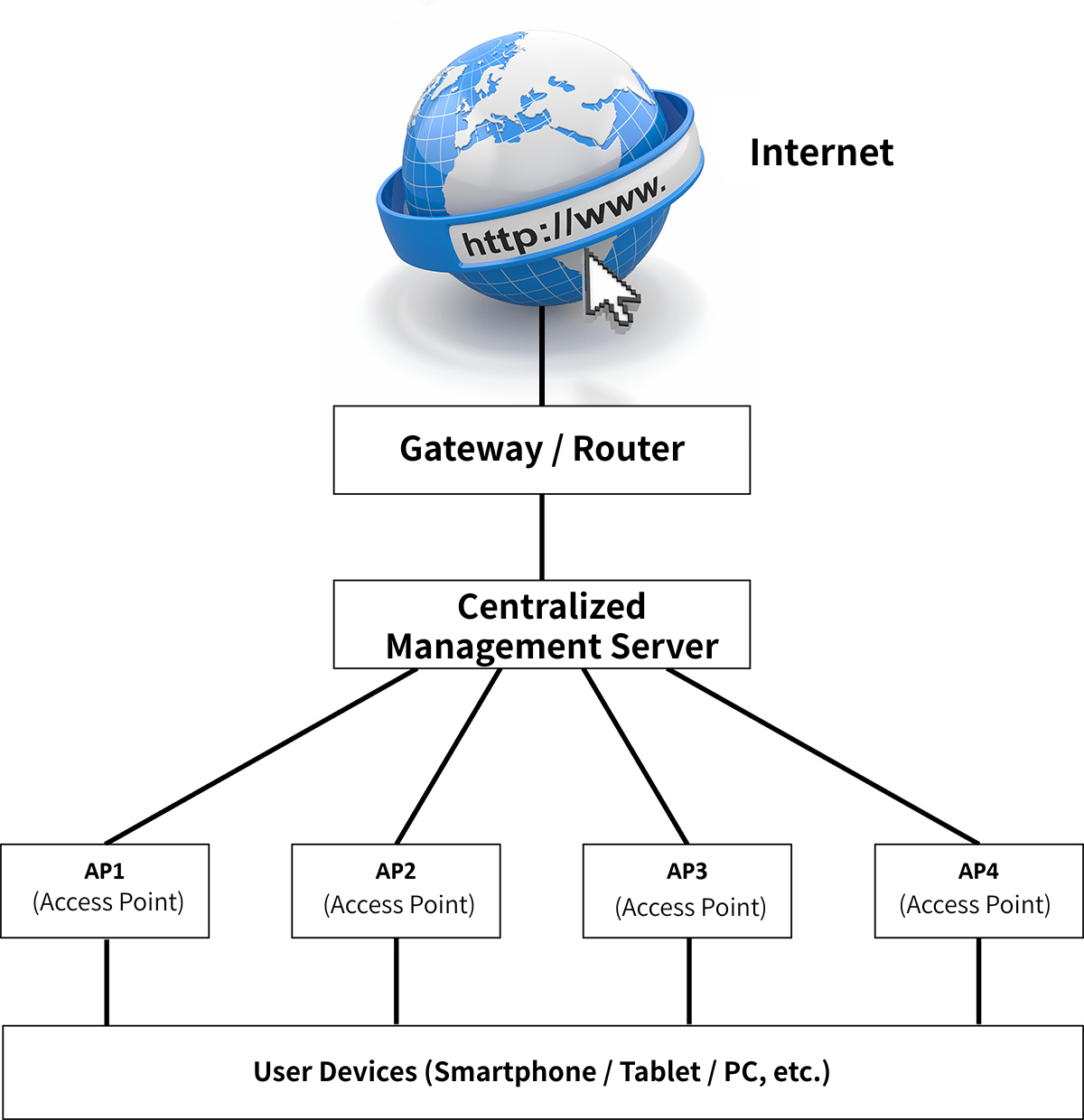

Public Wi-Fi spots

Public Wi-Fi spots (public wireless LANs) are open networks that can be used by an unspecified number of users.

Characteristics of public Wi-Fi spots

It can be used in a variety of places, including stations, cafes, convenience stores, and tourist spots.
In many cases, it is available for free.
Multiple Access points provide wide coverage.

Things to note when using public Wi-Fi spots

You should avoid entering personal information as it poses a high security risk.
It is important to choose an encrypted network (marked with a padlock).
Using a VPN can provide additional security.

Public Wi-Fi hotspots allow you to connect to the Internet on the go and can help you save on data costs, but security is still a major concern.
I will discuss security in my next column (coming soon).

Wi-Fi device configuration

We will explain the three main elements of Wi-Fi equipment configuration.

Access Point (AP)

Access point (AP) is a device that transmits and receives Wi-Fi radio waves.

Key Features

It connects client devices to the network via Wi-Fi radio waves.
It functions as a dedicated wireless LAN (Wi-Fi) base station.
Each Access point is assigned a unique network name (SSID).
(The latest Wi-Fi 7 Access points support high-speed connections and the ability to connect to a large number of devices.)

Client device (user terminal)

A client device (user terminal) is a terminal that connects to and uses a Wi-Fi network.
These devices include smartphones, TABLETS, laptops, Smart TVs, game consoles, etc. These devices connect to a Wi-Fi network through Access point.
Once you connect to a network, it becomes "saved" and you can automatically reconnect to it if it's within range.

router

A router is a device that controls communication between networks.
There are wired routers and wireless routers.
In a Wi-Fi environment, it serves as a connection between the Internet and a local network.
Recently, wireless routers (Wi-Fi routers) that also function as Access points have become common.
These devices have the ability to connect to the Internet via a wired LAN and to send and receive Wi-Fi radio waves.
Advanced routers come with features that improve security, such as privacy separators.

These three elements work together to create an efficient and secure Wi-Fi network environment.
Access point broadcasts a Wi-Fi signal, client devices receive and connect to that signal, and a router manages communication across the network.

Summary

This time, we focused on Wi-Fi network configuration and explained network topology: "home network" and "public Wi-Fi spot", and equipment configuration: "Access point", "client device", and "router".

In our next article, we will be discussing Wi-Fi security in more detail, titled "Wi-Fi Security."
