What is TC1?

TC1 is a committee that defines the requirements and test specifications for 100BASE-T1, as defined by the Open Alliance.
The details have been published on the official website, and this column provides an overview of the specifications.
For more information about OPEN ALLIANCE and other topics, please see the links below.

TC1 requirement specifications and test specification image

What is the Open Alliance? | Learn about the standards used in automotive Ethernet.
What is TC10 (Open Alliance Standard)? | Learn about "TC10" defined by the Open Alliance.
What is TC11 (Open Alliance Standard)? | Learn about "TC11" defined by the Open Alliance.

Functional specifications

1. OPEN Alliance BroadR-Reach® (OABR) Physical Layer Transceiver Specification For Automotive Applications

Based on IEEE 802.3-2012, it defines the BroadR-Reach PHY type, physical coding sublayer (BR-PCS), and physical medium attachment (BRPMA) sublayer operating at 100 Mb/s.
It is recommended that you consider IEEE 802.3, especially the 100 Mb/s PHY (Clause 21-25) and 1000 Mb/s PHY (Clause 34-40).

2. IEEE 100BASE-T1 System Implementation Specification

It provides a general definition and requirements for 100BASE-T1 interfaces intended for use in automotive applications, and the specifications defined in this document must be tested for EMC, interoperability, and conformance (PMA, PCS, PHY control).
However, communication systems that use Power over Data Line (PoDL) are not relevant to this specification.
For more information on PoDL, see Automotive Ethernet and POWER SUPPLIES Lines.

Image of in-vehicle Ethernet and POWER SUPPLIES lines

3. Advanced diagnostic features for 100BASE-T1 automotive Ethernet PHYs TC1 - advanced PHY features

This specification describes advanced features of 100BASE-T1 Automotive Ethernet PHYs (also known as transceivers), including diagnostic purposes for the Automotive Ethernet PHY. These mainly include signal quality, harness fault diagnosis, link-up quality, and polarity detection. These can be verified by Access registers. For register Access methods, see Clause 22/Clause 45.

Test specifications (functions)

4. BroadR-Reach DUT and Test Station Requirements

It describes the test requirements for a typical measurement device (DUT), specifically for hardware, MDI CONNECTORS, systems, transmitting and receiving FRAMES, and POWER SUPPLIES.

5. IEEE 100BASE-T1 PHY Control Test Suite

When testing, use the PHY in TestMode. This document describes the tests that correspond to each TestMode.

6. IEEE 100BASE-T1 Physical Media Attachment Test Suite

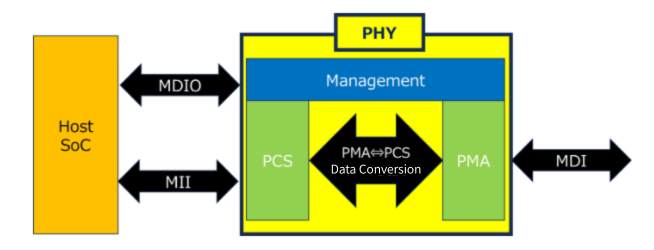

This book describes test methods for evaluating the functionality of the 100BASE-T1 PMA sublayer. It specifically provides detailed descriptions of the motivation, resources, procedures, and validation methods associated with each test. PMA is described in What is an Automotive PHY?

7. IEEE 100BASE-T1 Physical Coding Sublayer Test Suite

This book describes test methods for evaluating the functionality of the 100BASE-T1 PSC sublayer. It also provides detailed explanations of the motivation, resources, procedures, and verification methods associated with each test. For information on PMA, see What is an Automotive PHY?

8. 100BASE-T1 Interoperability Test Suite

Describes a test methodology for evaluating interoperability between multiple devices using 100BASE-T1 compatible PHYs.
In particular, the test methodology for 3. Advanced diagnostic features for 100BASE-T1 automotive Ethernet PHYs TC1 - advanced PHY features is described, and the test items also take into account PHY/ SWITCHES configurations and external FILTERS.

What is an Automotive PHY? | Learn about POWER SUPPLIES networks and automotive Ethernet.

Test specifications (noise)

9. IEEE 100BASE-T1 EMC Test Specification for Transceivers

A test methodology is described for the EMC evaluation of 100BASE-T1 transceivers in automotive applications, focusing on the physical layer of the Ethernet interface.
However, it does not apply to devices intended for use in Power over Ethernet applications.
For more information on Power over Ethernet, see Automotive Ethernet and POWER SUPPLIES Lines.

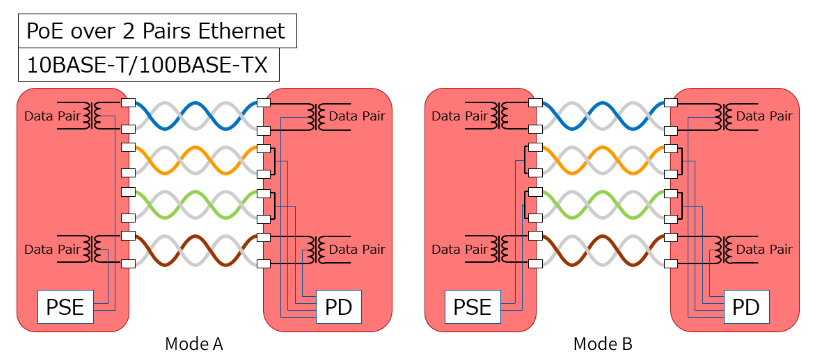

Test method focusing on the physical layer of an Ethernet interface

10. IEEE 100BASE-T1 EMC Test Specification for Common Mode Chokes

A test methodology is described for the EMC evaluation of common-mode chokes (CMCs) intended for use with 100BASE-T1 in automotive applications.
However, it does not apply to devices intended for use in Power over Data Line applications.
For more information on Power over Data Lines, see Automotive Ethernet and POWER SUPPLIES Lines.

11. IEEE 100BASE-T1 EMC Test Specification for ESD suppression devices

A test methodology is presented for the EMC evaluation of ESD suppression devices intended for use with 100BASE-T1 in automotive applications.
For EMC, see Automotive Ethernet and Quality Standards.

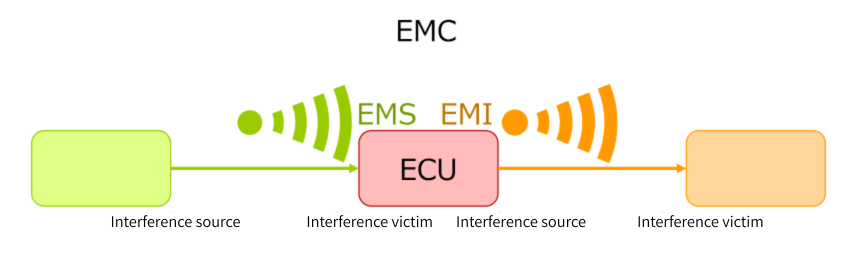

Image of test methodology for EMC evaluation of ESD suppression devices intended for use with 100BASE-T1 in automotive applications

Summary

We explained TC1, which established the required specifications and test specifications for 100BASE-T1.
Please refer to these documents when evaluating 100BASE-T1.
