Infineon: 1st supplier of magnetic angle sensors to achieve the highest automotive functional safety grade with only one sensor chip
New angle sensors: Infineon combines highest functional safety grading with an easy-to-use concept
Industrial & Multi Market , consumer goods and industrial equipment , Automotive Products
XENSIVE™ Highest variety GMR/AMR/TMR Angle Sensor
Highest variety - low end to high end, standardized and specialized in all four magnetic technologies: Hall, GMR, AMR and TMR
Our family of angle sensors is based on integrated Magneto Resistive (ixMR) technologies.
Infineon´s new magnetic sensor products TLE5501, are fast analogue TMR-based angle sensors dedicated to automotive applications. Their fields of use range from steering angle applications with the highest functional safety requirements to motors for wipers, pumps and actuators and electric motors in general. They are also ready to be used in industrial and consumer applications like robotics or gimbal.
Angle sensors detect the orientation of an applied magnetic field by measuring sine and cosine angle components with monolithically integrated magneto resistive elements.
Infineon´s iGMR sensors are ideal for applications with a wide angle range, such as BLDC motor or steering sensors. They are pre-calibrated and ready-to-use. Different levels of signal processing integration enable designers to optimize system partitioning.
Our iAMR sensors are ideal for applications with the highest accuracy requirements, as they offer best performance over temperature, lifetime and magnetic field range.
Schematic Description
Thanks to the use of innovative stack-mounting technology, the devices of the angle sensor family combine two independent sensors within standard and space-saving TDSO packages which are only about 1 mm thick. It has the same width and length as a conventional single-sensor package. Compared to the common approach of side-by-side sensor placement, the advantages of the top-bottom placement include a more homogeneous magnetic field over the sensing elements and a significantly smaller footprint. This saves precious space and cuts down on expense in safety- critical applications, as a lower-cost ferrite magnet can provide a sufficient magnetic field for the sensors.
（more info）
Document Download
- -Product Presentation- XENSIV™ TLI493D Ultra small 3D for industrial and consumer applications（1.25 MB）
- NEXTY FAE KENYA's Recommendation HALL IC's Product list !（1.11 MB）
- XENSIV™ – sensing the world Product Brochure（7.85 MB）
- Power and sensing Product Selection Guide 2018（12.38 MB）
- GMR-Based Angle Sensor TLE5012B User's Manual（3.15 MB）
- Position Sensors for Brushless DC Product Brief（544 KB）
- XENSIV™ – sensing the world Pocket Guide 2018（2.15 MB）
- Power & Sensing Guide 2019 !!（16.36 MB）
Purchase from Here
-
Demo KIT TLE5012B
-
Demo KIT TLE5014PROGKITTOBO1
-

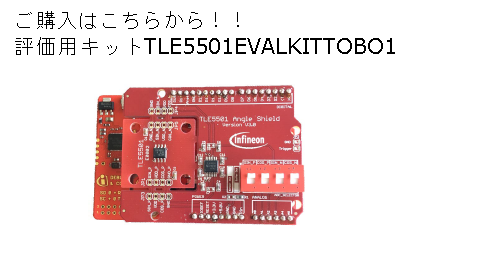

Demo KIT TLE5501EVALKITTOBO1
