What is Reverse Engineering?

Reverse engineering is a method used to thoroughly analyze existing products, systems, software, or processes in order to understand their structure, functionality, and behavior.
This process helps uncover how a product or system operates, enabling reproduction, improvement, or the development of compatible alternatives.

NEXTY Electronics Reverse Engineering Services

While reverse engineering serves various purposes, NEXTY Electronics primarily offers services focused on analyzing components mounted on automotive ECUs and other assembled circuit boards. By investigating each individual component and tracing the wiring across multiple layers of the board, we create circuit diagrams and parts lists for the target product.
Through competitive product analysis—such as technology trend research, benchmarking, and cost analysis—our services help identify areas for improvement and generate new ideas, ultimately enhancing product competitiveness.

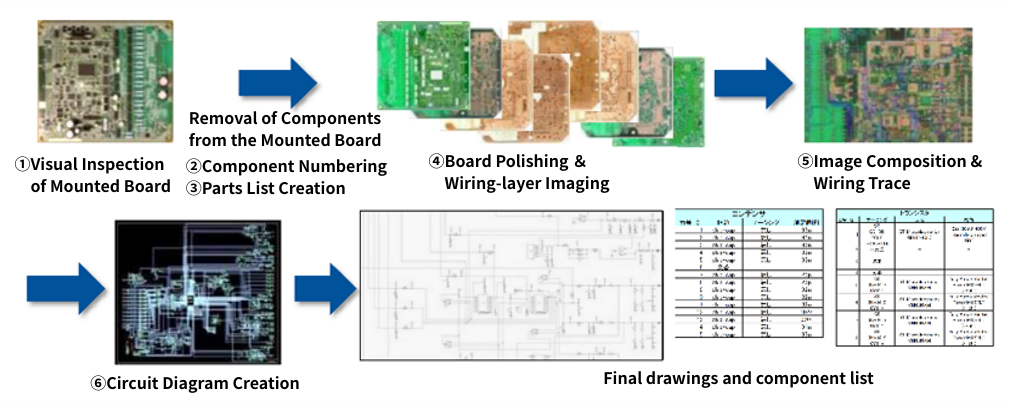

Reverse Engineering – Circuit Diagram Creation Flow

Reverse Engineering Service – Scope of Work

NO	Investigation Item	Details
①	Visual Inspection of Mounted Board	Condition Check and Photography Before Analysis
②	Component Numbering	Assign identification numbers to all mounted components and verify their types and quantities
③	Parts List Creation	Investigate component types, sizes, markings, and measurements, then compile into a list
④	Board Polishing	Horizontally polish the board to expose wiring on each layer and photograph the layers
⑤	Image Composition & Wiring Trace	Combine the wiring photographs taken in step ④ and trace the connections
⑥	Circuit Diagram Creation	Use CAD to draw circuit diagrams based on the components and wiring investigated in steps ①–④

In addition to standard through-hole boards, we also support IVH (Interstitial Via Hole) boards and build-up boards (2–8 layers).
Board Size Range: From small, fine-pitch boards (BGA) measuring 20 × 10 mm to large boards up to 350 × 150 mm.
Functional analysis, parameter measurement, and part number identification of mounted components → Reflected in circuit diagrams and component lists

Various Analysis and Investigation Options (Optional)

Investigation Item	Details
X-ray Inspection	Circuit Function Review
Board Wiring Trace & Layout Viewer	Component Price Survey
Cross-section Analysis & Measurement	ECU Functionality Analysis
Planar Observation & Measurement	Mounted IC Investigation (specific items subject to consultation)
Heat Resistance Measurement (Tg)	Various Material Analyses
Board Artwork Extraction	etc

Request Process

Inquiries and quotations are free of charge.
Our services are available for devices other than those handled by NEXTY Electronics.
Please feel free to contact us if you are interested.

1． Inquiry

Submit your request via the inquiry form, including details such as sample information, quantity, budget, and desired delivery date.
If you have related documents, please send them together. (Sample information and budget can be provided within the range you are comfortable sharing.)

2． Response and Quotation

A NEXTY Electronics representative will review your inquiry and confirm details during a hearing session.
We will check the analysis content, feasibility, and any additional requirements, then provide an estimate and delivery schedule.
After reviewing the analysis details, quotation, and delivery date, if you decide to proceed, we will send a formal quotation.

3．Order Placement and Shipment of Analysis Samples

Please send us your official order form. Upon receipt, we will begin the analysis process.
The shipping address for samples will be provided by NEXTY Electronics.

4． Analysis Execution

We will perform the requested analysis.
If you require interim results, we can provide a mid-term report upon request.
Examples:
Report before moving from non-destructive to destructive analysis
Early results for large-volume analysis

5．Report Delivery

The analysis results will be compiled into a report and sent to you.
If you have any questions or require clarification, please feel free to contact us.

6． Payment and Sample Return

After acceptance, NEXTY Electronics will return the samples along with the invoice, receipt, and delivery note.
Please proceed with payment accordingly.

Contact Us

We accept consultations, questions, and quotation requests via the button below.
Our services are available for devices other than those handled by NEXTY Electronics.
For quotation requests, including the following information will help us respond smoothly:
Even if the information is not listed, please feel free to contact us. Once confirmed, a representative will get back to you.

Required Information for Quotation Request：
Request details：
Sample information：
Quantity：
Budget：
Desired delivery date：

Request a Quote / Contact Us

Our Service Locations

Tokyo OfficeVAC(Value Adding Center)

Location	4-495, Tateno, Higashiyamato-shi,Tokyo,207-0021 Japan
Supported Services	Reliability Testing, Reverse Engineering, Optical Characterization of LEDs, ROM Writing, Screening Inspection

Key Points of Our Quality and Analysis Service Locations

At NEXTY Electronics’ VA Center Division, we provide reliable quality and analysis services you can rely on, supported by a comprehensive framework as outlined below.
