Livox is committed to accelerating the autonomous world by unlocking the full potential of LiDAR technology. With our line of advanced sensor units, we offer businesses and developers a trusted route to incorporate this technology into their projects and platforms. Our LiDAR sensors are high-performance, affordable, and ready to use, with the power to transform industries and define the future.

Columns

Sensor fusion of 3D-LiDAR (Livox: HAP) and camera

We achieved sensor fusion using the inexpensive and highly functional Livox HAP and a USB camera.

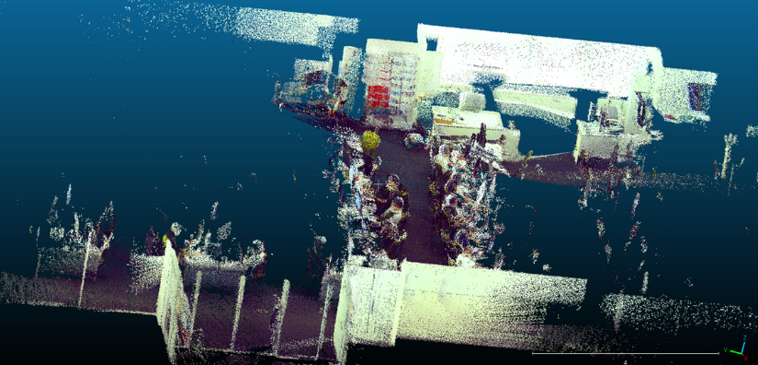

Creating a 3D map using 3D LiDAR (Livox: MID-360)

We implemented 3D-MAP creation (LIO-Livox) using the MID-360, a 3D-LiDAR manufactured by Livox, which costs less than 100,000 yen.

Creating a 3D-MAP using 3D-LiDAR (Livox: MID-360) - Implementation of FAST-LIO

Using Livox's MID-360, we implemented 3D-MAP creation (FAST-LIO) in the Handy Map Kit.

Self-location estimation and movement trajectory acquisition using 3D-LiDAR (Livox: MID-360) (FAST-LIO-LOCALIZATION)

We implemented self-location estimation and movement trajectory using a handy map kit equipped with Livox MID-360.

Livox 3D-LiDAR product information

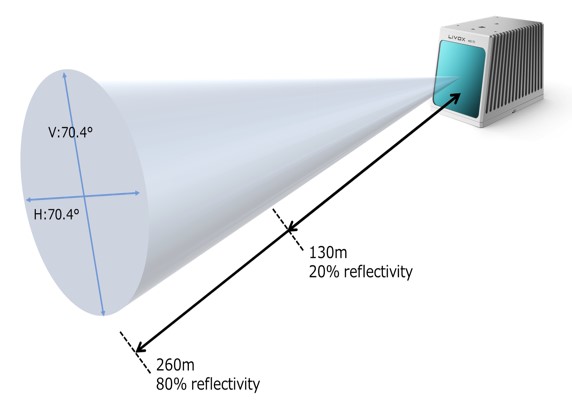

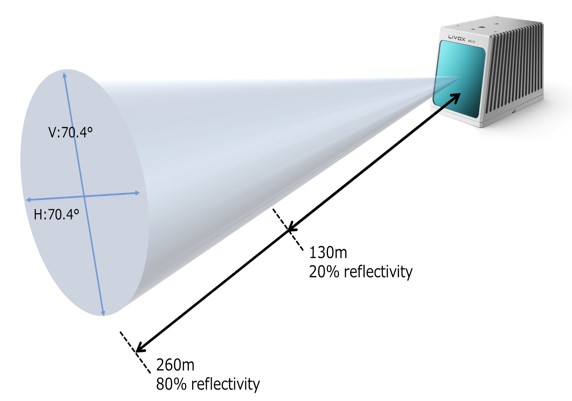

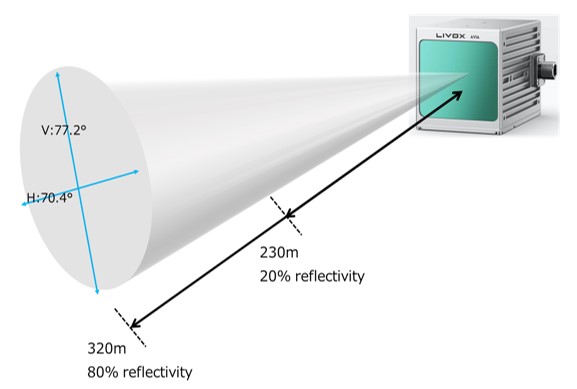

Model	Tele-15	Mid-70	AVIA	NEW ⁄ In-vehicle compatible product HAP	NEW Mid-360
Laser wavelength	905 nm
safety grade	Class 1 (IEC60825-1:2014)
range	180 m @ 反射率10%	90 m @ 反射率10%	190 m @ 反射率10%	150 m @ 反射率10%	40 m @ 反射率10%
(@100k lux)	250 m @ 反射率20%	130 m @ 反射率20%	230 m @ 反射率20%	－	－
	500 m @ 反射率80%	260 m @ 反射率80%	320 m @ 反射率80%	210 m @ 反射率80%	70 m @ 反射率80%
FOV	15° circular	70.4° circular	70.4° (horizontal) × 77.2°/4.5°(vertical)	120°(horizontal) × 25°(vertical)	360°(horizontal) × 59°(-7~52°)(vertical)
Scanning Method	Non-repetitive scanning		Non-repetitive scan ⁄ Iterative Scan	Non-repetitive scanning	Non-repetitive scan ⁄ Iterative Scan
Data size	240,000 points ⁄ second	100,000 points ⁄ second	240,000 points ⁄ second	452,000 points ⁄ second	200,000 points ⁄ second
Operating environment temperature	-40℃ to 85℃	-20℃ to 65℃		-40℃ to 85℃	-20℃ to 55℃
IP rating	IP67 (Note 3)			IP67
Interface	Ethernet			Automotive Ethernet ⁄ Ethernet	Ethernet
Dimensions	122 × 105 × 94mm	97 × 64 × 62.7mm	91 × 61.2 × 64.8mm	99.6 × 103 × 65mm	65 × 65 × 60mm
Weight	約 1400g	約 580g	約 498g	約 1040g	約 265g
WEB price	¥148,000	¥92,400	¥167,200	¥189,200	¥91,740

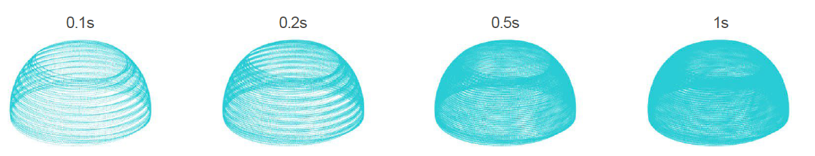

Unique scanning pattern is key

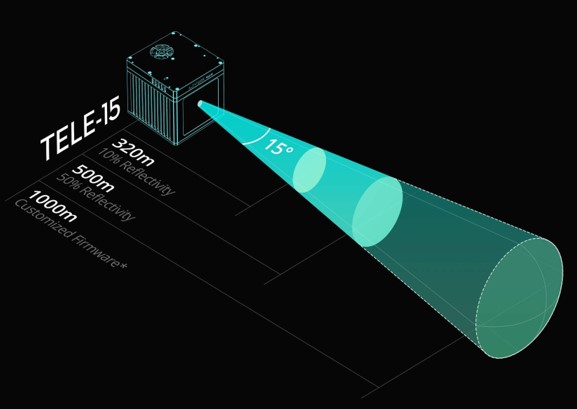

Unlike general multi-line spinning LiDARs, this LiDAR uses a unique scanning method (non-repetitive scanning: petal-shaped/∞-shaped) that rotates the prism to create a unique pattern, which increases the integration time and increases the scanning rate within the FOV (field of view). The Tele-15 can scan 99.8% of the FOV in approximately 0.1 seconds (achieving a detection rate of over 128 lines).

Coverage

new products

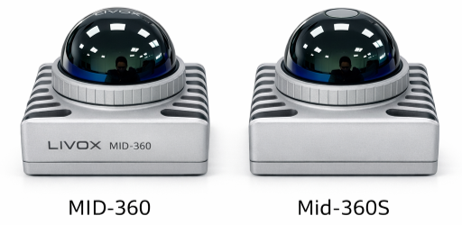

MID-360

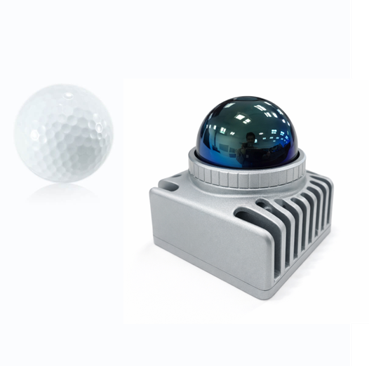

The MID-360 is the latest generation of Livox LiDAR for low-speed robotics. It's ultra-compact, affordable, and palm-sized, offering 360-degree sensing capabilities. It inherits the cost-effectiveness of the Livox Mid series and delivers 360-degree 3D perception. It's compact, lightweight, and easy to install. The Mid-360 is optimized for the navigation and obstacle avoidance requirements of small mobility vehicles. This allows LiDAR to be used in conjunction with algorithms for SLAM and obstacle avoidance in a wide range of environments.

FOV: 360° x 59° (-7 to 52°)

Non-repetitive scanning

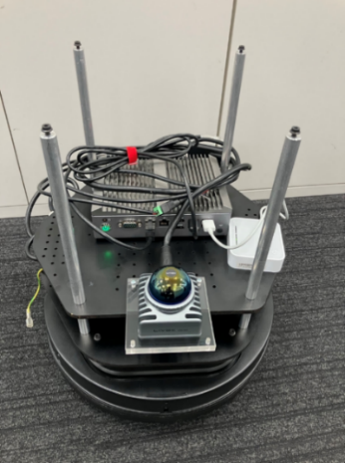

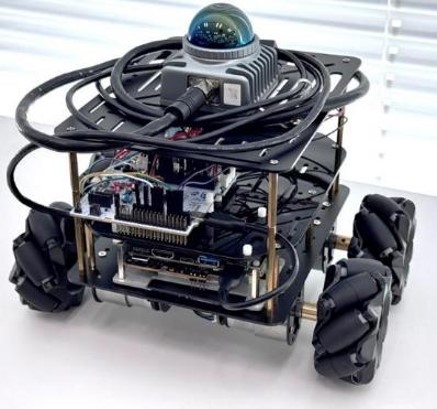

• MID-360 adoption example

HAP

The automotive-grade, market-proven, high-density 3D LiDAR HAP has passed over 70 automotive-grade reliability tests at Livox's in-house testing center. Built to China National Accreditation Commission for Conformity Assessment (CNAS) standards, the factory is equipped with state-of-the-art testing equipment and is staffed by a team of industry-leading experts. This configuration gives Livox incredibly efficient testing capabilities, enabling the HAP to meet the standards of major automakers and industry standards such as ISO 16750.

• HAP adoption example

Purpose

Livox's affordable, high-performance 3D-LiDAR makes it possible to use 3D-LiDAR not only in autonomous driving and robotics, but in a wide range of fields.

• High-speed automated driving

•

  Passenger Cars & RobotTaxi

•

  track

•

  Maps for autonomous driving

•

  V2X

• robot

•

  Automatic vacuum cleaner

•

  Autonomous delivery robot

•

  Logistics and factory robots

•

  automatic grass cutter

• mapping

•

  Drone 3D Mapping

•

  Static Mapping

•

  Mobile Mapping

•

  Hand Mapping

• Others

•

  Security

•

  Smart Agriculture

•

  Factory production support

•

  Railway

option

Livox 3-wire aviation CONNECTORS

One end is an M12 female aviation CONNECTORS, and the other end is POWER SUPPLIES, Ethernet, and function CABLES CONNECTORS.

What's in the box
Aviation CONNECTORS POWER SUPPLIES network port CABLES x 1

specification
Length: 1.5 m

Livox HAP (T1) Wire Pack

For HAP (T1: Automotive Ethernet)
POWER CABLES and network CABLES are included.

What's in the box
POWER CABLES x 1
1x In-Vehicle Ethernet CABLES

specification
Automotive Ethernet CABLES length: 1.8 m

Livox M12 Aviation Plug Extension CABLES (1m)/(5m)

By inserting it between the Livox LiDAR unit itself and CABLES included with it, you can increase the freedom of where you install the LiDAR.
1m extension CABLES or 5m extension CABLES

What's in the box
M12 aviation plug extension CABLES 1m or 5m x1

Livox AC POWER SUPPLIES Adapter

Converts 100-240V AC to 12V DC.
We recommend using this POWER SUPPLIES adapter to power your Livox LiDAR unit.

What's in the box
Huntkey adapter x 1
AcBel POWER SUPPLIES adapter AC CABLES x 1
POWER SUPPLIES adapter CONNECTORS × 1

specification
Input voltage: 100VAC~240VAC, 50Hz~60Hz
Output voltage: 12 V
Rated power: 84W
Operating environment temperature: 0° to 40° C

• If you want to connect it to a Livox 3-wire aviation CONNECTORS, you will need to change CONNECTORS.

Livox Technology Online Seminar Archive Video Now Available

Held on April 20, 2022

We introduced the low-cost, high-performance Livox 3D-LiDAR product, and explained application examples using LiDAR, as well as how to use ready-to-use sample software. An archive including Q&A and presentation materials is now available. Please take a look. Video: 5 sessions, totaling approximately 2 hours
